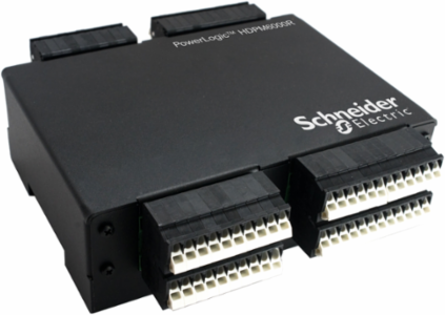

Schneider Electric METSEHDPM6R24 PowerLogic HDPM6000R retrofit module 24-circuits
- MPN: METSEHDPM6R24
- PPN: SCH-METSEHDPM6R24
CAD
$1338.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is an integrated solution for monitoring multi-circuits and power quality by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres, facilities and energy management in buildings. Allow monitoring of loads up to 4000A with utility grade accuracy on all branch channels. This combination include 1 retrofit element for current transformers in order to measure values for 24 branch circuits. Allow measurement of energy, power demand, instantaneous power, current, harmonic, voltage and more - in total or per phases. Devices can be connected in dasy-chain thanks to CAT5 or CAT6 straight-through Ethernet cable. The HDPM6000 series can also maintain multiple, concurrent sessions with EPMS, DCIM or BMS applications via the Modbus, SNMP and BACnet IP protocols. The retrofit module dimensions are 173mm in width connector included, 64mm in height and 173.48mm in depth. Certified for IEC61326-1 and EN61326-1:2020, related to Industrial Electromagnetic Environment. The elements can be mounted on a DIN rail thanks to the clips at the back side. The system PowerLogic HDPM6000 can help you identify increased harmonics in the rack servers to detect a potential disruption. Thanks to daisy-chain, it is possible to connect additional modules if the head unit capacity isn't exceeded.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 172.97 mm |
|---|
Communications & Management Attributes
| Communication Of Data | power quality, reading of measurements, percentage of load |
|---|---|
| Communication Port Support | 2 RJ45 ETHERNET |
| Communication Port Protocol | TCP/IP, Modbus, SNMP, BACnet |
|---|
Important Information Attributes
| Energy Management | asset management, measurement, cost management |
|---|---|
| Mounting Mode | clipped, by screws |
| Type Of Measurement | active energy all channelsactive power all channelsapparent power all channelsreactive power all channelscurrent per channel, current all channels, active energy per channel, active power per channel, apparent power per channel, reactive power per channel, frequency, power factor per channel, power factor average |
| Carbon Footprint Of The Distribution Phase [A4] | 0.5236748501694074, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.015840709486106035, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 64 kg CO2 eq., 63.70283247751717 |
| Local Publishable Date | 2026-01-20 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Memory Capacity | 8 GB |
| Power Quality Analysis | total harmonic distortion |
| Product Name | PowerLogic HDPM6000 |
| Range | PowerLogic |
| Sampling Rate | 128 samples/cycle |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 132.4512 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 64 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9028300000 |
| Market Segment | data center, industrial buildings, healthcare, non-, critical buildings |
|---|---|
| Mounting Support | 35 mm DIN rail, enclosure |
| Certificate Agency | UL Listed conforming to UL 508 A, CE, cURus |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3 kg CO2 eq., 2.934429375546221 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 34 kg CO2 eq., 34.1494862881984 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | DPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2510043EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2105 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Short Name | HDPM6000R |
| Measurement Category | category III |
| Noise Level | 0-65 dB |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | metering module |
| Returnability | No |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 101 kg CO2 eq. |
| Pep Code | ENVPEP2510043EN |
| Pep Verification Date | 2025-10-23 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 54 |
| Width Nominal | 173.48 mm |
| Package Weight(Lbs) | 1.81373 kg |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | PLSED310185EN |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-60 °C, -20-60 °C |
|---|---|
| Operating Altitude | <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2510043EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-90 % |
| Pep Verification Date | 2025-10-23 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 101.32626370091731 |
| Environmental Disclosure | ENVPEP2510043EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2510043EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | metering module |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|
| ETIM 9 | EC001420 |
|---|
Input Attributes
| Analogue Input Type | external CT |
|---|
| Number Of Inputs | 24 current |
|---|
