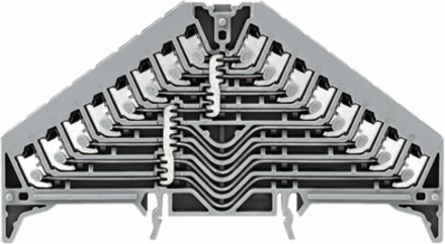

Weidmuller 1173870000 PPV 8 GR 35X7.5 DGR
- MPN: 1173870000
- PPN: WDM-1173870000
CAD
$38.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

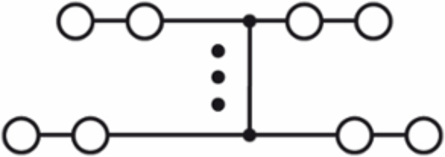

P-series, Potential distributor, Rated cross-section: 1.5 mm², Number of levels: 8, Number of connections: 32, Colour: grey
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 9.2 mm
- Height
- 120 mm
- Depth
- 65.5 mm
- Net weight
- 47.89 g
Width (inches)0.362 inch
Height (inches)4.724 inch
Depth (inches)2.579 inch
Csa Rating Data
- Certificate No. (CSA)
- 200039-2406089
- Current size D (CSA)
- 10 A
- Voltage size D (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)10 A
Voltage size B (CSA)300 V
Wire cross section max. (CSA)16 AWG
Additional Technical Data
- Type of mounting
- Snap-on
Material Data
- Material
- Polycarbonate
- Colour
- grey
Material of operational elementsPBT
UL 94 flammability ratingV-0
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
System Specifications
- Version
- PUSH IN connection, Vertically cross-connected, One end without connector
- Number of levels
- 8
- Number of potentials per tier
- 1
- PE connection
- No
End cover plate requiredYes
Number of clamping points per level4
Levels cross-connected internallyYes
RailTS 35 x 7.5
Temperatures
- Storage temperature, max.
- 70 °C
- Storage temperature
- -25 °C...70 °C
- Continuous operating temp., min.
- -50 °C
- Temperature range, installation, max.
- 40 °C
Storage temperature, min.-25 °C
Temperature range, installation, min.-10 °C
Continuous operating temp., max.130 °C
Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 17.5 A
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
- Rated impulse withstand voltage
- 4 kV
- Surge voltage category
- III
Rated voltage250 V
StandardsIEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.56 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Number of connections
- 32
- Type of connection
- PUSH IN
- Wire connection cross section AWG, min.
- AWG 24
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.1.5 mm²
Connection cross-section, stranded, max.1.5 mm²
Connection directionInclined / angled
Stripping length10 mm
Wire connection cross section AWG, max.AWG 16
Wire connection cross section, finely stranded, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire connection cross-section, solid core, max.1.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size D (cURus)
- 10 A
- Voltage size D (cURus)
- 300 V
Conductor size Factory wiring max. (cURus)16 AWG
Conductor size Field wiring max. (cURus)16 AWG
Current size B (cURus)10 A
Voltage size B (cURus)300 V
