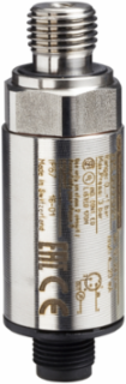

Telemecanique Sensors XMLG010D71TQ Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0.8...10 bar, G 1/4 A (male), 24 V, 0...10 V, set of 25
- MPN: XMLG010D71TQ
- PPN: TES-XMLG010D71TQ
CAD
$203.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XMLG range is an offer of electronic pressure transmitters, with an analogue or solid-state output. The XMLG transmitters feature a stainless steel AISI 303 body and a ceramic cell combined with a viton gasket. Therefore, they are compatible with industrial fluids such as air, fresh water and hydraulic oils. Pressure range: from 0bar to 10bar or from 0psi to 145psi. Analogue output: 0V to 10V. Fluid connection: G 1/4 A (male). Electrical connection: M12. This transmitter is sold in lots of 25. Minimum quantity 50.
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Type Of Packing
- group
- Fluid Connection Type
- G 1/4A (male) DIN 3852-E
- Controlled Fluid
- air -15-125 °C) || corrosive fluid -15-125 °C) || hydraulic oil -15-125 °C) || fresh water 0-125 °C)
- Quantity Per Set
- set of 25
Electrical Connection1 male connector M12, 3 pins
Diameter22.8 mm
Product Or Component Typeelectronic pressure sensors
Pressure Sensor NameXMLG
Pressure Sensor Size10 bar
Analogue Output Function0...10 V, 3 wires
[Us] Rated Supply Voltage24 V DC 11.4-33 V)
Complementary
- Height
- 58.1 mm
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.015 % of measuring range/°C
- Length
- 48.5 mm
- Net Weight
- 0.095 kg
- Surge Withstand
- 1 kV 42 Ohm EN/IEC 61000-4-5 || 500 kV 12 Ohm EN/IEC 61000-4-5
- Operating Position
- any position
- Protection Type
- reverse polarity || load short-circuit
- Drift Of The Sensitivity
- +/- 0.015 % of measuring range/°C
- Destruction Pressure
- 25 bar
Response Time On Output< 2 ms
Repeat Accuracy+/- 0.1 % of the measuring range
Materials In Contact With Fluidstainless steel type AISI 303 || ceramic || FPM (Viton)
Local Displaywithout
Current Consumption< 20 mA
Mechanical Durability10000000 cycles
Measurement Accuracy+/- 0.3 % of the measuring range
Electrical Circuit Typecontrol circuit
Maximum Permissible Accidental Pressure22 bar
Pressure Setting Range0-10 bar
Environment
- Product Certifications
- CSA C22.2 No 14 || EAC || UL 508
- Ambient Air Temperature For Operation
- -15-85 °C
- Standards
- CE || EN/IEC 61326-2-3
- Resistance To Magnetic Fields
- 30 A/m 50 Hz EN/IEC 61000-4-8
- Ip Degree Of Protection
- IP66 EN/IEC 60529 || IP67 EN/IEC 60529
- Ambient Air Temperature For Storage
- -40-85 °C
- Protective Treatment
- TC
Resistance To Conducted Disturbances30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields200 V/m 80-1000 Hz EN/IEC 61000-4-3
Shock Resistance25 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance20 gn 9-2000 Hz)EN/IEC 60028-2-6
Nema Degree Of ProtectionNEMA 4
Resistance To Electrostatic Discharge15 kV in air EN/IEC 61000-4-2 || 8 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients4 kV EN/IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
