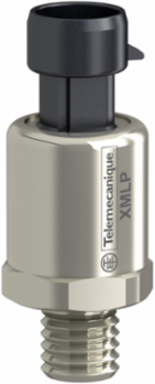

Telemecanique Sensors XMLP600PP230Q Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 600 PSI, 1/4"18NPT, 4...20 mA, Packard, set 25
- MPN: XMLP600PP230Q
- PPN: TES-XMLP600PP230Q
- UNSPSC: 41111927
CAD
$164.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 600 PSI, 1/4"18NPT, 4...20 mA, Packard, set 25
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Size
- 600-600 psi
- Electrical Circuit Type
- control circuit
- Type Of Packing
- group
- Local Display
- without
- Current Consumption
- < 23 mA
Analogue Output Function4...20 mA, 2-wire
Controlled Fluidfresh water 0-135 °C) || air -40-135 °C) || hydraulic oil -40-135 °C) || gas -40-135 °C) || refrigeration fluid -40-135 °C)
Electrical Connection1 male connector Packard Metripack 150 3 pins
Quantity Per Setset of 25
Product Or Component Typeelectronic pressure sensors
[Us] Rated Supply Voltage12...24 V DC SELV 7-33 V)
Pressure Sensor NameXMLP
Fluid Connection Type1/4" - 18 NPT (male)
Complementary
- Accuracy
- 0.1 % of the measuring range
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.02 % of measuring range/°K
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Protection Type
- reverse polarity || load short-circuit
- Maximum Permissible Accidental Pressure
- 1800 psi
- Length
- 55 mm
- Net Weight
- 0.09 kg
- Pressure Setting Range
- 0-600 psi
Diameter26 mm
Mechanical Durability10000000 cycles
Operating Positionany position
Electromagnetic Compatibilityelectrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 4 kV || susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...3000 MHz || radiated RF fields EN/IEC 61000-4-6 10 V 0.01...80 MHz
Drift Of The Sensitivity+/- 0.02 % of measuring range/°K
Materials In Contact With Fluidstainless steel AISI 316L
Destruction Pressure3600 psi
Response Time On Output<= 2 ms 10...90 % of full scale
Environment
- Product Certifications
- RCM || CE || cULus || EAC
- Ambient Air Temperature For Storage
- -50-100 °C
- Shock Resistance
- 100 gn 11 ms EN/IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-30-85 °C
StandardsEN/IEC 61326-2-3 || NSF ANSI 61
Vibration Resistance20 gn 15-2000 Hz) EN/IEC 60068-2-6
Ip Degree Of ProtectionIP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
