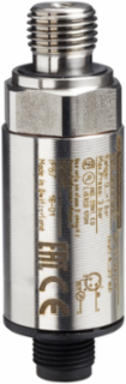

Telemecanique Sensors XMLG025D23 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...25 bar, 1/4" NPT male, 24 V, 4...20 mA
- MPN: XMLG025D23
- PPN: TES-XMLG025D23
- UNSPSC: 39122210
CAD
$305.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...25 bar, 1/4" NPT male, 24 V, 4...20 mA
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Electrical Connection
- 1 male connector M12, 3 pins
- Controlled Fluid
- air -15-125 °C) || corrosive fluid -15-125 °C) || hydraulic oil -15-125 °C) || fresh water 0-125 °C)
- Range Of Product
- Telemecanique Pressure sensors XM
- Quantity Per Set
- set of 1
- Type Of Packing
- individual
- Pressure Sensor Name
- XMLG
Pressure Sensor Size25 bar
Type Of Output Signalanalogue
Diameter22.8 mm
Analogue Output Function4...20 mA, 2 wires
Product Or Component Typeelectronic pressure sensors
[Us] Rated Supply Voltage12 V DC 8-33 V) || 24 V DC 8-33 V)
Fluid Connection Type1/4" - 18 NPT (male)
Complementary
- Height
- 58.1 mm
- Response Time On Output
- < 2 ms
- Repeat Accuracy
- +/- 0.1 % of the measuring range
- Drift Of The Zero Point
- +/- 0.015 % of measuring range/°C
- Measurement Accuracy
- +/- 0.3 % of the measuring range
- Electrical Circuit Type
- control circuit
- Maximum Permissible Accidental Pressure
- 56 bar
- Length
- 48.5 mm
- Local Display
- without
- Current Consumption
- < 20 mA
Surge Withstand1 kV 42 Ohm EN/IEC 61000-4-5 || 500 kV 12 Ohm EN/IEC 61000-4-5
[Uimp] Rated Impulse Withstand Voltage0.5 kV
Mechanical Durability10000000 cycles
Operating Positionany position
Protection Typeload short-circuit || reverse polarity
Drift Of The Sensitivity+/- 0.015 % of measuring range/°C
Materials In Contact With Fluidceramic || FPM (Viton) || stainless steel type AISI 303
Destruction Pressure62.5 bar
Net Weight0.095 kg
Pressure Setting Range0-25 bar
Environment
- Product Certifications
- UL 508 || CSA C22.2 No 14 || EAC
- Ambient Air Temperature For Operation
- -15-85 °C
- Nema Degree Of Protection
- NEMA 4
- Standards
- EN/IEC 61326-2-3 || CE
- Shock Resistance
- 25 gn 11 ms EN/IEC 60068-2-27
- Vibration Resistance
- 20 gn 9-2000 Hz)EN/IEC 60028-2-6
- Resistance To Fast Transients
- 4 kV EN/IEC 61000-4-4
Resistance To Conducted Disturbances30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields200 V/m 80-1000 Hz EN/IEC 61000-4-3
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge15 kV in air EN/IEC 61000-4-2 || 8 kV on contact EN/IEC 61000-4-2
Resistance To Magnetic Fields30 A/m 50 Hz EN/IEC 61000-4-8
Protective TreatmentTC
Ip Degree Of ProtectionIP66 EN/IEC 60529 || IP67 EN/IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
