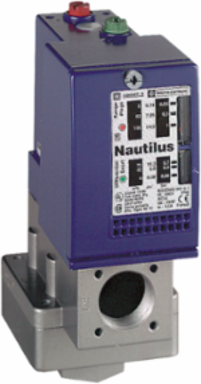

Telemecanique Sensors XMLC004B2S11 pressure switch XMLC 4 bar - adjustable scale 2 thresholds - 2 C/O

MPN: XMLC004B2S11
PPN: TES-XMLC004B2S11
UNSPSC: 39122210

$813.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLC 4 bar - adjustable scale 2 thresholds - 2 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	2 C/O
Pressure Actuator	diaphragm
Range Of Product	Telemecanique Pressure sensors XM
Pressure Switch Type Of Operation	regulation between 2 thresholds
Product Or Component Type	electromechanical pressure sensor
Materials In Contact With Fluid	FPM, FKM \|\| steel
Fluid Connection Type	G 1/4 (female) ISO 228
Controlled Fluid	air 0-160 °C) \|\| fresh water 0-160 °C) \|\| hydraulic oil 0-160 °C)
Scale Type	adjustable differential
Enclosure Material	zinc alloy
Maximum Permissible Accidental Pressure	9 bar
Destruction Pressure	18 bar

Pressure Sensor Type	electromechanical pressure sensor
Electrical Connection	screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
Line Rated Current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 \|\| 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 \|\| 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Cable Entry	cable gland 9-13 mm
Adjustable Range Of Switching Point On Falling Pressure	0.15-3.83 bar
Local Display	with
Pressure Sensor Size	4 bar
Awg Gauge	AWG 20...AWG 14
Electrical Circuit Type	control circuit
Adjustable Range Of Switching Point On Rising Pressure	0.3-4 bar
Possible Differential Maximum At High Setting	2.5 bar
Device Short Name	XMLC

Complementary

Repeat Accuracy	2 %
Terminal Block Type	8 terminals
Contacts Material	silver contacts
Auxiliary Contacts Operation	simultaneous, snap action
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Maximum Operating Rate	120 cyc/mn
Setting	external
Width	55 mm
Maximum Resistance Across Terminals	25 mOhm IEC 255-7 category 3 \|\| 25 mOhm NF C 93-050 method A

Height	158 mm
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Possible Differential Minimum At High Setting	0.17 bar +/- 0.02 bar)
Net Weight	0.685 kg
Maximum Permissible Pressure - Per Cycle	5 bar
[Ui] Rated Insulation Voltage	300 V UL 508 \|\| 500 V EN/IEC 60947-1 \|\| 300 V CSA C22.2 No 14
Mechanical Durability	8000000 cycles
Depth	90 mm
Possible Differential Minimum At Low Setting	0.15 bar +/- 0.02 bar)

Environment

Product Certifications	UL \|\| EAC \|\| CSA
Standards	UL 508 \|\| CSA C22.2 No 14 \|\| EN/IEC 60947-5-1 \|\| CE
Shock Resistance	50 gn IEC 60068-2-27
Ambient Air Temperature For Storage	-40-70 °C
Operating Position	any position

Ambient Air Temperature For Operation	-25-70 °C
Vibration Resistance	4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 conforming to EN/IEC 60529
Protective Treatment	TC standard version
Electrical Shock Protection Class	class I IEC 1140 \|\| class I IEC 536 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110914EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
