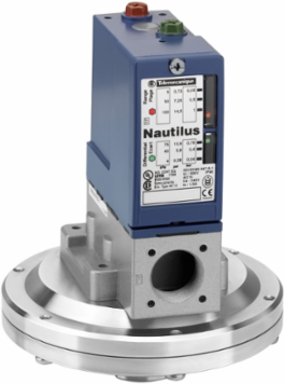

Telemecanique Sensors XMLB001R2S11 pressure switch XMLB 1 bar - adjustable scale 2 thresholds - 1 C/O
- MPN: XMLB001R2S11
- PPN: TES-XMLB001R2S11
CAD
$456.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XMLB electromechanical pressure switch has an adjustable differential for regulation of 2 thresholds and a zinc alloy body with a range scale window. This pressure switch is designed for regulation of pressure between 2 thresholds for air and hydraulic oils at temperatures up to 160°C. It is fixed directly on tubage. It provides zinc alloy enclosure for robust performance. 4 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, LROS, UL 508, EAC, BV.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 C/O
- Pressure Actuator
- diaphragm
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Product Or Component Type
- electromechanical pressure sensor
- Materials In Contact With Fluid
- 304L stainless steel || steel || FPM, FKM
- Fluid Connection Type
- G 1/4 (female) ISO 228
- Controlled Fluid
- air 0-160 °C) || hydraulic oil 0-160 °C)
- Scale Type
- adjustable differential
- Enclosure Material
- zinc alloy
- Maximum Permissible Accidental Pressure
- 2.25 bar
- Destruction Pressure
- 4.5 bar
Pressure Sensor Typeelectromechanical pressure sensor
Electrical Connectionscrew-clamps terminals, 1 x 0.5...2 x 2.5 mm² || 1 connector Pg 13
Line Rated Current3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Cable Entrycable gland 9-13 mm
Adjustable Range Of Switching Point On Falling Pressure0.01-0.94 bar
Local Displaywith
Pressure Sensor Size1 bar
Awg GaugeAWG 20...AWG 14
Electrical Circuit Typecontrol circuit
Adjustable Range Of Switching Point On Rising Pressure0.05-1 bar
Possible Differential Maximum At High Setting0.75 bar
Device Short NameXMLB
Complementary
- Repeat Accuracy
- 2 %
- Terminal Block Type
- 4 terminals
- Contacts Material
- silver contacts
- Auxiliary Contacts Operation
- snap action
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Maximum Operating Rate
- 120 cyc/mn
- Setting
- external
- Width
- 110 mm
- Maximum Resistance Across Terminals
- 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A
Height162 mm
Short-Circuit Protection10 A cartridge fuse gG (gl)
Possible Differential Minimum At High Setting0.06 bar +/- 20 mbar)
Net Weight2.575 kg
Maximum Permissible Pressure - Per Cycle1.25 bar
[Ui] Rated Insulation Voltage300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14
Mechanical Durability4000000 cycles
Depth110 mm
Possible Differential Minimum At Low Setting0.04 bar +/- 10 mbar)
Environment
- Product Certifications
- EAC || LROS (Lloyds register of shipping) || CSA || UL || BV || CCC
- Standards
- CSA C22.2 No 14 || CE || UL 508 || EN/IEC 60947-5-1
- Shock Resistance
- 30 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
- Operating Position
- any position
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance2 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 conforming to EN/IEC 60529
Protective TreatmentTC standard version
Electrical Shock Protection Classclass I IEC 1140 || class I IEC 536 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110914EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
