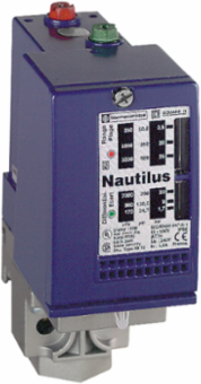

Telemecanique Sensors XMLC010B2S12 pressure switch XMLC 10 bar - adjustable scale 2 thresholds - 2 C/O
- MPN: XMLC010B2S12
- PPN: TES-XMLC010B2S12
- UNSPSC: 39122210
CAD
$813.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 10bar pressure switch is part of the XML range, an offer of electromechanical pressure and vacuum switches. These switches have an adjustable differential and are designed for regulation between two thresholds. The function of pressure switches is the control or regulation of pressure levels in hydraulic systems. They transform the pressure change into a digital electrical signal when the preset switching points are reached. This pressure switch has a setting scale, and an adjustable range of switching point, or rising pressure, from 0.7bar to 10bar (10.15psi to 145psi). Thanks to the electromechanical technology, this product is reliable and simple to use. It incorporates two C/O single-pole, simultaneous, snap action contacts. It has a diaphragm pressure actuator. This pressure switch features a zinc alloy case, a G 1/4 female fluid connector and one entry tapped M20 x 1.5mm for ISO gable gland. Electrical connection with screw-clamps terminals. It is suitable for controlling hydraulic oils, fresh water and air up to +160°C. It complies with UL, CSA, EAC certifications, and with CE, IEC/EN 60947-5-1, UL 508, CSA C22-2 no. 14 standards. Dedicated accessories, to be ordered separatly, are available to facilitate the setting or ptotect the switch. Knurled adjustment knob, fixing plate, lead sealable protective cover, sealing gaskets, etc. This switch operates in all positions. The XML range brings high level of reliability and quality, long life duration, and a worldwide availability.
Documentation & Downloads
Specifications
Key Specifications
| Contacts Type And Composition | 2 C/O |
|---|---|
| Pressure Actuator | diaphragm |
| Range Of Product | Telemecanique Pressure sensors XM |
| Pressure Switch Type Of Operation | regulation between 2 thresholds |
| Product Or Component Type | electromechanical pressure sensor |
| Materials In Contact With Fluid | brass || FPM, FKM |
| Fluid Connection Type | G 1/4 (female) ISO 228 |
| Controlled Fluid | air 0-160 °C) || fresh water 0-160 °C) || hydraulic oil 0-160 °C) |
| Scale Type | adjustable differential |
| Enclosure Material | zinc alloy |
| Maximum Permissible Accidental Pressure | 22.5 bar |
| Destruction Pressure | 45 bar |
| Pressure Sensor Type | electromechanical pressure sensor |
|---|---|
| Electrical Connection | screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² |
| Line Rated Current | 3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1 |
| Cable Entry | cable gland 7-13 mm |
| Adjustable Range Of Switching Point On Falling Pressure | 0.25-9.3 bar |
| Local Display | with |
| Pressure Sensor Size | 10 bar |
| Awg Gauge | AWG 20...AWG 14 |
| Electrical Circuit Type | control circuit |
| Adjustable Range Of Switching Point On Rising Pressure | 0.7-10 bar |
| Possible Differential Maximum At High Setting | 8 bar |
| Device Short Name | XMLC |
Complementary
| Repeat Accuracy | 2 % |
|---|---|
| Terminal Block Type | 8 terminals |
| Contacts Material | silver contacts |
| Auxiliary Contacts Operation | simultaneous, snap action |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Maximum Operating Rate | 120 cyc/mn |
| Setting | external |
| Width | 46 mm |
| Maximum Resistance Across Terminals | 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A |
| Height | 113 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
| Possible Differential Minimum At High Setting | 0.7 bar +/- 0.01 bar) |
| Net Weight | 0.685 kg |
| Maximum Permissible Pressure - Per Cycle | 12.5 bar |
| [Ui] Rated Insulation Voltage | 300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14 |
| Mechanical Durability | 5000000 cycles |
| Depth | 85 mm |
| Possible Differential Minimum At Low Setting | 0.45 bar +/- 0.05 bar) |
Environment
| Product Certifications | UL || CSA || EAC |
|---|---|
| Standards | CE || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Operating Position | any position |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Vibration Resistance | 4 gn 30-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 conforming to EN/IEC 60529 |
| Protective Treatment | TC standard version |
| Electrical Shock Protection Class | class I IEC 1140 || class I IEC 536 || class I NF C 20-030 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110914EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
