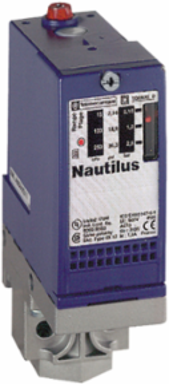

Telemecanique Sensors XMLA500N2S11 pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O

MPN: XMLA500N2S11
PPN: TES-XMLA500N2S11

$379.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	1 C/O
Pressure Sensor Size	500 bar
Electrical Connection	screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² \|\| 1 connector Pg 13
Awg Gauge	AWG 20...AWG 14
[In] Rated Current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 \|\| 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 \|\| 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Pressure Switch Type Of Operation	detection of 1 single threshold
Electrical Circuit Type	control circuit
Adjustable Range Of Switching Point On Rising Pressure	30-500 bar
Adjustable Range Of Switching Point On Falling Pressure	10-455 bar
Materials In Contact With Fluid	FPM, FKM \|\| PTFE \|\| 316L stainless steel
Local Display	with
Fluid Connection Type	G 1/4 (female) ISO 228

Pressure Sensor Type	electromechanical pressure sensor
Pressure Actuator	piston
Controlled Fluid	air 0-160 °C) \|\| corrosive fluid 0-160 °C)
Range Of Product	Telemecanique Pressure sensors XM
Scale Type	fixed differential
Cable Entry	cable gland 9-13 mm
Enclosure Material	zinc alloy
Product Or Component Type	electromechanical pressure sensor
Maximum Permissible Accidental Pressure	1125 bar
Destruction Pressure	2250 bar
Device Short Name	XMLA

Complementary

Repeat Accuracy	2 %
Maximum Operating Rate	60 cyc/mn
[Ui] Rated Insulation Voltage	300 V UL 508 \|\| 500 V EN/IEC 60947-1 \|\| 300 V CSA C22.2 No 14
Natural Differential At High Setting	45 bar +/- 10 bar)
Contacts Material	silver contacts
Auxiliary Contacts Operation	snap action
Depth	75 mm
Natural Differential At Low Setting	20 bar +/- 6 bar)
Maximum Resistance Across Terminals	25 mOhm IEC 255-7 category 3 \|\| 25 mOhm NF C 93-050 method A

Height	113 mm
Terminal Block Type	4 terminals
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Setting	external
Mechanical Durability	3000000 cycles
Width	35 mm
Net Weight	0.75 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Maximum Permissible Pressure - Per Cycle	625 bar

Environment

Product Certifications	UL \|\| CSA \|\| LROS (Lloyds register of shipping) \|\| CCC \|\| EAC \|\| BV
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC standard version
Electrical Shock Protection Class	class I IEC 1140 \|\| class I IEC 536 \|\| class I NF C 20-030
Shock Resistance	50 gn IEC 60068-2-27

Ambient Air Temperature For Operation	-25-70 °C
Standards	EN/IEC 60947-5-1 \|\| UL 508 \|\| CSA C22.2 No 14 \|\| CE
Operating Position	any position
Vibration Resistance	4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 EN/IEC 60529
