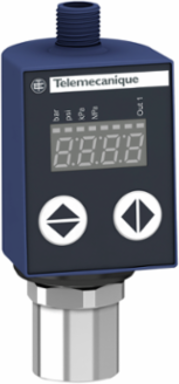

Telemecanique Sensors XMLR001G1N26 Electronic pressure sensors, Pressure sensors XM, XMLR 1 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, NPN, M12
- MPN: XMLR001G1N26
- PPN: TES-XMLR001G1N26
- UNSPSC: 41111927
CAD
$594.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, XMLR 1 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, NPN, M12
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Pressure Switch Type Of Operation
- pressure transmitter with 1 switching output
- Fluid Connection Type
- 1/4" - 18 NPT (female)
- Controlled Fluid
- fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
- [Us] Rated Supply Voltage
- 24 V DC SELV 17-33 V)
- Device Short Name
- XMLR
Range Of ProductTelemecanique Pressure sensors XM
Product Or Component Typeelectronic pressure sensors
Pressure Sensor Size1 bar || 14.5 psi || 100 kPa
Maximum Permissible Accidental Pressure7.5 bar || 109 psi || 750 kPa
Destruction Pressure7.5 bar || 750 kPa || 109 psi
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Height
- 100 mm
- Linearity Error
- <= 0.5 % of the measuring range
- Display Response Time Type
- fast 50 ms || normal 200 ms || slow 600 ms
- Repeat Accuracy
- <= 0.2 % of the measuring range
- Time Delay Range
- 0...50 s in steps of 1 second
- Maximum Switching Current
- 250 mA
- Operating Position
- any position, but disposals can falsified the measurement in case of upside down mounting
- Net Weight
- 0.212 kg
- Current Consumption
- <= 50 mA
- Maximum Delay First Up
- 300 ms
- Scale Type
- fixed differential
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- <= 0.6 % of the measuring range
- Adjustable Range Of Switching Point On Rising Pressure
- 0.08-1 bar || 1.16-14.5 psi || 8-100 kPa
- Width
- 41 mm
- Front Material
- polyester
- Hysteresis
- <= 0.2 % of the measuring range
- Response Time On Output
- <= 10 ms analog output || <= 5 ms discrete output
Electrical Connectionmale connector M12, 4 pins
Accuracy<= 1 % of the measuring range
Type Of Output Signalanalogue + discrete
Maximum Voltage Drop2 V
Drift Of The Zero Point+/- 0.1 % of measuring range/°C
Electromagnetic Compatibilitysusceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Adjustable Range Of Switching Point On Falling Pressure0.73-14.1 psi || 5-97 kPa || 0.05-0.97 bar
Materials In Contact With Fluidfluorocarbon FKM (Viton) || 316L stainless steel || ceramic
Minimum Differential Travel0.03 bar || 3 kPa || 0.43 psi
Contacts Type And CompositionNO/NC programmable
Analogue Output Function4...20 mA
Local Signallingfor light ON when switch is actuated 1 LED (yellow)
Housing Materialpolyacrylamide || 316L stainless steel
Protection Typeshort-circuit protection || overload protection || reverse polarity || overvoltage protection
Drift Of The Sensitivity+/- 0.03 % of measuring range/°C
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Depth42 mm
Discrete Output Typesolid state NPN, NO/NC programmable
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- cULus || EAC
- Standards
- UL 61010-1 || EN/IEC 61326-2-3
- Marking
- CE
- Ip Degree Of Protection
- IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529
Ambient Air Temperature For Operation-20-80 °C
Shock Resistance50 gn EN/IEC 60068-2-27
Vibration Resistance20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-80 °C
