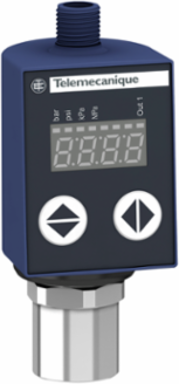

Telemecanique Sensors XMLR010G1N26 Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, NPN, M12

MPN: XMLR010G1N26
PPN: TES-XMLR010G1N26
UNSPSC: 39122210

$594.13

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, NPN, M12

Documentation & Downloads

Specifications

Key Specifications

Pressure Sensor Type	pressure transmitter
Pressure Switch Type Of Operation	pressure transmitter with 1 switching output
Fluid Connection Type	1/4" - 18 NPT (female)
Controlled Fluid	fresh water 0-80 °C) \|\| air -20-80 °C) \|\| hydraulic oil -20-80 °C) \|\| refrigeration fluid -20-80 °C)
[Us] Rated Supply Voltage	24 V DC SELV 17-33 V)
Device Short Name	XMLR

Range Of Product	Telemecanique Pressure sensors XM
Product Or Component Type	electronic pressure sensors
Pressure Sensor Size	145 psi \|\| 10 bar
Maximum Permissible Accidental Pressure	580 psi \|\| 4 MPa \|\| 40 bar
Destruction Pressure	40 bar \|\| 4 MPa \|\| 580 psi

Complementary

Display Accuracy	<= 1 % of the measuring range
Height	100 mm
Linearity Error	<= 0.5 % of the measuring range
Display Response Time Type	fast 50 ms \|\| normal 200 ms \|\| slow 600 ms
Repeat Accuracy	<= 0.2 % of the measuring range
Time Delay Range	0...50 s in steps of 1 second
Maximum Switching Current	250 mA
Operating Position	any position, but disposals can falsified the measurement in case of upside down mounting
Net Weight	0.212 kg
Current Consumption	<= 50 mA
Maximum Delay First Up	300 ms
Scale Type	fixed differential
Mechanical Durability	10000000 cycles
Measurement Accuracy	<= 0.6 % of the measuring range
Adjustable Range Of Switching Point On Rising Pressure	0.8-10 bar \|\| 11.6-145 psi \|\| 0.08-1 MPa
Width	41 mm
Front Material	polyester
Hysteresis	<= 0.2 % of the measuring range
Response Time On Output	<= 10 ms analog output \|\| <= 5 ms discrete output

Electrical Connection	male connector M12, 4 pins
Accuracy	<= 1 % of the measuring range
Type Of Output Signal	analogue + discrete
Maximum Voltage Drop	2 V
Drift Of The Zero Point	+/- 0.1 % of measuring range/°C
Electromagnetic Compatibility	susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 \|\| immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 \|\| surge immunity test 1 kV EN/IEC 61000-4-5 \|\| electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 \|\| electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Adjustable Range Of Switching Point On Falling Pressure	0.05-0.97 MPa \|\| 7.25-141 psi \|\| 0.5-9.7 bar
Materials In Contact With Fluid	316L stainless steel \|\| ceramic \|\| fluorocarbon FKM (Viton)
Minimum Differential Travel	0.3 bar \|\| 30 kPa \|\| 4.35 psi
Contacts Type And Composition	NO/NC programmable
Analogue Output Function	4...20 mA
Local Signalling	light ON when switch is actuated 1 LED yellow)
Housing Material	316L stainless steel \|\| polyacrylamide
Protection Type	reverse polarity \|\| overload protection \|\| overvoltage protection \|\| short-circuit protection
Drift Of The Sensitivity	+/- 0.03 % of measuring range/°C
Display Type	4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage	0.5 kV DC
Depth	42 mm
Discrete Output Type	solid state NPN, NO/NC programmable

Environment

Product Certifications	cULus \|\| EAC
Standards	UL 61010-1 \|\| EN/IEC 61326-2-3
Marking	CE
Ip Degree Of Protection	IP65 EN/IEC 60529 \|\| IP67 EN/IEC 60529

Ambient Air Temperature For Operation	-20-80 °C
Shock Resistance	50 gn EN/IEC 60068-2-27
Vibration Resistance	20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage	-40-80 °C

Offer Sustainability

Rohs Exemption Information	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
