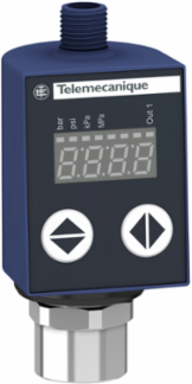

Telemecanique Sensors XMLR010G1N75 Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, G 1/4, 24 VDC, 0...10 V, NPN, M12
- MPN: XMLR010G1N75
- PPN: TES-XMLR010G1N75
- UNSPSC: 41111927
CAD
$594.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, G 1/4, 24 VDC, 0...10 V, NPN, M12
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Pressure Switch Type Of Operation
- pressure transmitter with 1 switching output
- Fluid Connection Type
- G 1/4 (female) DIN 3852-Y
- Controlled Fluid
- fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
- [Us] Rated Supply Voltage
- 24 V DC SELV 17-33 V)
- Device Short Name
- XMLR
Range Of ProductTelemecanique Pressure sensors XM
Product Or Component Typeelectronic pressure sensors
Pressure Sensor Size145 psi || 10 bar
Maximum Permissible Accidental Pressure40 bar || 4 MPa || 580 psi
Destruction Pressure580 psi || 4 MPa || 40 bar
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Height
- 93 mm
- Linearity Error
- <= 0.5 % of the measuring range
- Display Response Time Type
- fast 50 ms || normal 200 ms || slow 600 ms
- Repeat Accuracy
- <= 0.2 % of the measuring range
- Time Delay Range
- 0...50 s in steps of 1 second
- Maximum Switching Current
- 250 mA
- Operating Position
- any position, but disposals can falsified the measurement in case of upside down mounting
- Net Weight
- 0.19 kg
- Current Consumption
- <= 50 mA
- Maximum Delay First Up
- 300 ms
- Scale Type
- fixed differential
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- <= 0.6 % of the measuring range
- Adjustable Range Of Switching Point On Rising Pressure
- 0.8-10 bar || 0.08-1 MPa || 11.6-145 psi
- Width
- 41 mm
- Front Material
- polyester
- Hysteresis
- <= 0.2 % of the measuring range
- Response Time On Output
- <= 10 ms analog output || <= 5 ms discrete output
Electrical Connectionmale connector M12, 4 pins
Accuracy<= 1 % of the measuring range
Type Of Output Signalanalogue + discrete
Maximum Voltage Drop2 V
Drift Of The Zero Point+/- 0.1 % of measuring range/°C
Electromagnetic Compatibilitysusceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Adjustable Range Of Switching Point On Falling Pressure7.25-141 psi || 0.5-9.7 bar || 0.05-0.97 MPa
Materials In Contact With Fluidfluorocarbon FKM (Viton) || 316L stainless steel || ceramic
Minimum Differential Travel4.35 psi || 30 kPa || 0.3 bar
Contacts Type And CompositionNO/NC programmable
Analogue Output Function0...10 V
Local Signallinglight ON when switch is actuated 1 LED yellow)
Housing Materialpolyacrylamide || 316L stainless steel
Protection Typeovervoltage protection || reverse polarity || overload protection || short-circuit protection
Drift Of The Sensitivity+/- 0.03 % of measuring range/°C
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Depth42 mm
Discrete Output Typesolid state NPN, NO/NC programmable
Environment
- Product Certifications
- cULus || EAC
- Standards
- UL 61010-1 || EN/IEC 61326-2-3
- Marking
- CE
- Ip Degree Of Protection
- IP65 EN/IEC 60529 || IP67 EN/IEC 60529
Ambient Air Temperature For Operation-20-80 °C
Shock Resistance50 gn EN/IEC 60068-2-27
Vibration Resistance20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-80 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach Free Of SvhcYes
