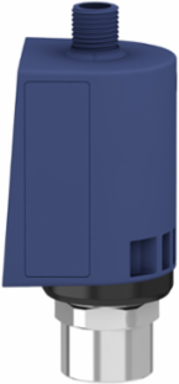

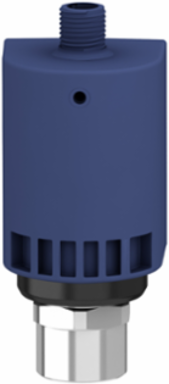

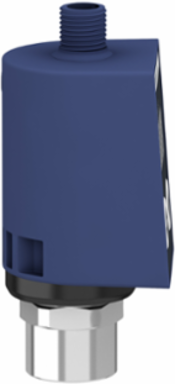

Telemecanique Sensors XMLR010G0T75 Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, G 1/4, 24 VDC, 0...10 V, M12

MPN: XMLR010G0T75
PPN: TES-XMLR010G0T75

$574.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

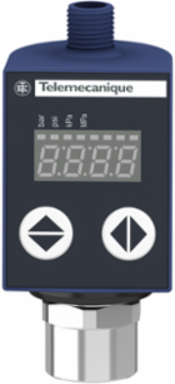

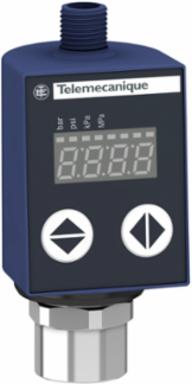

This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC and an analog ouput of 0V to 10V. It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment. It complies with EN/IEC 61326-2-3 and UL 61010-1.

Documentation & Downloads

Specifications

Key Specifications

Pressure Sensor Type	pressure transmitter
Pressure Switch Type Of Operation	pressure transmitter
Fluid Connection Type	G 1/4 (female) DIN 3852-Y
Controlled Fluid	fresh water 0-80 °C) \|\| air -20-80 °C) \|\| hydraulic oil -20-80 °C) \|\| refrigeration fluid -20-80 °C)
[Us] Rated Supply Voltage	24 V DC SELV 17-33 V)
Device Short Name	XMLR

Range Of Product	Telemecanique Pressure sensors XM
Product Or Component Type	electronic pressure sensors
Pressure Sensor Size	145 psi \|\| 10 bar
Maximum Permissible Accidental Pressure	580 psi \|\| 40 bar \|\| 4 MPa
Destruction Pressure	580 psi \|\| 40 bar \|\| 4 MPa

Complementary

Display Accuracy	<= 1 % of the measuring range
Height	93 mm
Linearity Error	<= 0.5 % of the measuring range
Display Response Time Type	fast 50 ms \|\| normal 200 ms \|\| slow 600 ms
Drift Of The Zero Point	+/- 0.1 % of measuring range/°C
Operating Position	any position, but disposals can falsified the measurement in case of upside down mounting
Net Weight	0.19 kg
Maximum Delay First Up	300 ms
Scale Type	fixed differential
Housing Material	polyacrylamide \|\| 316L stainless steel
Protection Type	overload protection \|\| short-circuit protection \|\| reverse polarity \|\| overvoltage protection
Width	41 mm
Front Material	polyester
Hysteresis	<= 0.2 % of the measuring range
Response Time On Output	<= 10 ms analog output

Electrical Connection	male connector M12, 4 pins
Accuracy	<= 1 % of the measuring range
Type Of Output Signal	analogue
Repeat Accuracy	<= 0.2 % of the measuring range
Electromagnetic Compatibility	susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 \|\| immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 \|\| surge immunity test 1 kV EN/IEC 61000-4-5 \|\| electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 \|\| electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Materials In Contact With Fluid	fluorocarbon FKM (Viton) \|\| ceramic \|\| 316L stainless steel
Current Consumption	<= 50 mA
Analogue Output Function	0...10 V
Mechanical Durability	10000000 cycles
Measurement Accuracy	<= 0.6 % of the measuring range
Drift Of The Sensitivity	+/- 0.03 % of measuring range/°C
Display Type	4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage	0.5 kV DC
Depth	42 mm

Environment

Product Certifications	cULus \|\| EAC
Standards	EN/IEC 61326-2-3 \|\| UL 61010-1
Marking	CE
Ip Degree Of Protection	IP65 EN/IEC 60529 \|\| IP67 EN/IEC 60529

Ambient Air Temperature For Operation	-20-80 °C
Shock Resistance	50 gn EN/IEC 60068-2-27
Vibration Resistance	20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage	-40-80 °C

Offer Sustainability

Rohs Exemption Information	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
