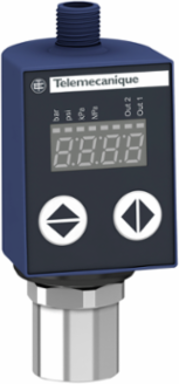

Telemecanique Sensors XMLR016G2N06 Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, 1/4" 18 NPT, 24 VDC, 2xNPN, M12
- MPN: XMLR016G2N06
- PPN: TES-XMLR016G2N06
- UNSPSC: 41111927
CAD
$535.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, 1/4" 18 NPT, 24 VDC, 2xNPN, M12
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Pressure Switch Type Of Operation
- pressure switch with 2 switching outputs
- Fluid Connection Type
- 1/4" - 18 NPT (female)
- Controlled Fluid
- fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
- [Us] Rated Supply Voltage
- 24 V DC SELV 17-33 V)
- Device Short Name
- XMLR
Range Of ProductTelemecanique Pressure sensors XM
Product Or Component Typeelectronic pressure sensors
Pressure Sensor Size16 bar || 232 psi
Maximum Permissible Accidental Pressure62 bar || 6.2 MPa || 900 psi
Destruction Pressure900 psi || 62 bar || 6.2 MPa
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Height
- 100 mm
- Type Of Output Signal
- discrete
- Maximum Voltage Drop
- 2 V
- Drift Of The Zero Point
- +/- 0.1 % of measuring range/°C
- Electromagnetic Compatibility
- susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
- Adjustable Range Of Switching Point On Falling Pressure
- 0.08-1.55 MPa || 0.8-15.5 bar || 11.6-225 psi
- Materials In Contact With Fluid
- 316L stainless steel || ceramic || fluorocarbon FKM (Viton)
- Minimum Differential Travel
- 48 kPa || 7 psi || 0.48 bar
- Contacts Type And Composition
- 2 NO/NC programmable
- Scale Type
- fixed differential
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- <= 0.6 % of the measuring range
- Adjustable Range Of Switching Point On Rising Pressure
- 18.6-232 psi || 1.28-16 bar || 0.128-1.6 MPa
- Width
- 41 mm
- Front Material
- polyester
- Depth
- 42 mm
- Discrete Output Type
- solid state NPN, 2 NO/NC programmable
Electrical Connectionmale connector M12, 4 pins
Accuracy<= 1 % of the measuring range
Display Response Time Typefast 50 ms || normal 200 ms || slow 600 ms
Repeat Accuracy<= 0.2 % of the measuring range
Time Delay Range0...50 s in steps of 1 second
Maximum Switching Current250 mA
Operating Positionany position, but disposals can falsified the measurement in case of upside down mounting
Net Weight0.212 kg
Current Consumption<= 50 mA
Maximum Delay First Up300 ms
Local Signallinglight ON when switch is actuated 2 LEDs yellow)
Housing Material316L stainless steel || polyacrylamide
Protection Typeshort-circuit protection || overvoltage protection || overload protection || reverse polarity
Drift Of The Sensitivity+/- 0.03 % of measuring range/°C
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Response Time On Output<= 5 ms discrete output
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach Free Of SvhcYes
Environment
- Product Certifications
- EAC || cULus
- Standards
- EN/IEC 61326-2-3 || UL 61010-1
- Marking
- CE
- Ip Degree Of Protection
- IP65 EN/IEC 60529 || IP67 EN/IEC 60529
Ambient Air Temperature For Operation-20-80 °C
Shock Resistance50 gn EN/IEC 60068-2-27
Vibration Resistance20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-80 °C
