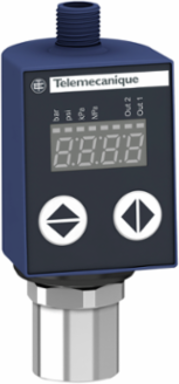

Telemecanique Sensors XMLR016G2P06 Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, 1/4" 18 NPT, 24 VDC, 2xPNP, M12
- MPN: XMLR016G2P06
- PPN: TES-XMLR016G2P06
- UNSPSC: 41111927
CAD
$535.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, 1/4" 18 NPT, 24 VDC, 2xPNP, M12
Documentation & Downloads
Specifications
Key Specifications
| Pressure Sensor Type | pressure transmitter |
|---|---|
| Pressure Switch Type Of Operation | pressure switch with 2 switching outputs |
| Fluid Connection Type | 1/4" - 18 NPT (female) |
| Controlled Fluid | fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C) |
| [Us] Rated Supply Voltage | 24 V DC SELV 17-33 V) |
| Device Short Name | XMLR |
| Range Of Product | Telemecanique Pressure sensors XM |
|---|---|
| Product Or Component Type | electronic pressure sensors |
| Pressure Sensor Size | 232 psi || 16 bar |
| Maximum Permissible Accidental Pressure | 62 bar || 6.2 MPa || 900 psi |
| Destruction Pressure | 900 psi || 62 bar || 6.2 MPa |
Complementary
| Display Accuracy | <= 1 % of the measuring range |
|---|---|
| Height | 100 mm |
| Type Of Output Signal | discrete |
| Maximum Voltage Drop | 2 V |
| Drift Of The Zero Point | +/- 0.1 % of measuring range/°C |
| Electromagnetic Compatibility | susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2 |
| Adjustable Range Of Switching Point On Falling Pressure | 0.08-1.55 MPa || 0.8-15.5 bar || 11.6-225 psi |
| Materials In Contact With Fluid | 316L stainless steel || fluorocarbon FKM (Viton) || ceramic |
| Minimum Differential Travel | 7 psi || 0.48 bar || 48 kPa |
| Contacts Type And Composition | 2 NO/NC programmable |
| Scale Type | fixed differential |
| Mechanical Durability | 10000000 cycles |
| Measurement Accuracy | <= 0.6 % of the measuring range |
| Adjustable Range Of Switching Point On Rising Pressure | 18.6-232 psi || 1.28-16 bar || 0.128-1.6 MPa |
| Width | 41 mm |
| Front Material | polyester |
| Depth | 42 mm |
| Discrete Output Type | solid state PNP, 2 NO/NC programmable |
| Electrical Connection | male connector M12, 4 pins |
|---|---|
| Accuracy | <= 1 % of the measuring range |
| Display Response Time Type | fast 50 ms || normal 200 ms || slow 600 ms |
| Repeat Accuracy | <= 0.2 % of the measuring range |
| Time Delay Range | 0...50 s in steps of 1 second |
| Maximum Switching Current | 250 mA |
| Operating Position | any position, but disposals can falsified the measurement in case of upside down mounting |
| Net Weight | 0.212 kg |
| Current Consumption | <= 50 mA |
| Maximum Delay First Up | 300 ms |
| Local Signalling | for light ON when switch is actuated 2 LEDs (yellow) |
| Housing Material | polyacrylamide || 316L stainless steel |
| Protection Type | overvoltage protection || reverse polarity || overload protection || short-circuit protection |
| Drift Of The Sensitivity | +/- 0.03 % of measuring range/°C |
| Display Type | 4 digits 7 segments |
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV DC |
| Response Time On Output | <= 5 ms discrete output |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Mercury Free | Yes |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Environment
| Product Certifications | cULus || EAC |
|---|---|
| Standards | EN/IEC 61326-2-3 || UL 61010-1 |
| Marking | CE |
| Ip Degree Of Protection | IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529 |
| Ambient Air Temperature For Operation | -20-80 °C |
|---|---|
| Shock Resistance | 50 gn EN/IEC 60068-2-27 |
| Vibration Resistance | 20 gn 10-2000 Hz)EN/IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-80 °C |
