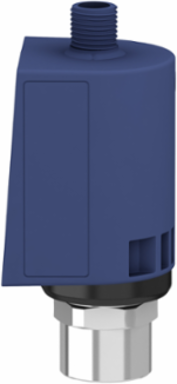

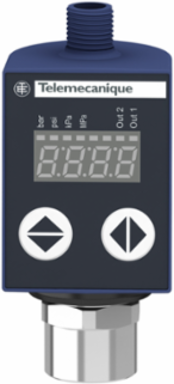

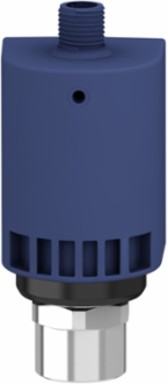

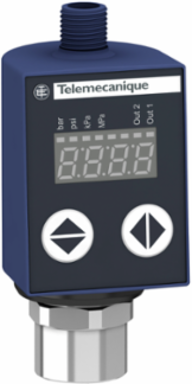

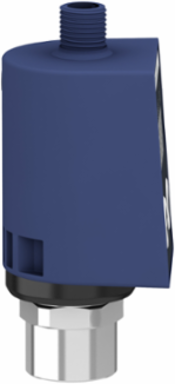

Telemecanique Sensors XMLR016G2P05 Electronic pressure sensors, Pressure sensors XM, XMLR 16 bar, G 1/4, 24 VDC, 2xPNP, M12
- MPN: XMLR016G2P05
- PPN: TES-XMLR016G2P05
- UNSPSC: 41111927
CAD
$535.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC and 2 x solid state outputs (PNP). It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment. It complies with EN/IEC 61326-2-3 and UL 61010-1.
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Pressure Switch Type Of Operation
- pressure switch with 2 switching outputs
- Fluid Connection Type
- G 1/4 (female) DIN 3852-Y
- Controlled Fluid
- fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
- [Us] Rated Supply Voltage
- 24 V DC SELV 17-33 V)
- Device Short Name
- XMLR
Range Of ProductTelemecanique Pressure sensors XM
Product Or Component Typeelectronic pressure sensors
Pressure Sensor Size232 psi || 16 bar
Maximum Permissible Accidental Pressure6.2 MPa || 900 psi || 62 bar
Destruction Pressure900 psi || 6.2 MPa || 62 bar
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Height
- 93 mm
- Type Of Output Signal
- discrete
- Maximum Voltage Drop
- 2 V
- Drift Of The Zero Point
- +/- 0.1 % of measuring range/°C
- Electromagnetic Compatibility
- susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
- Adjustable Range Of Switching Point On Falling Pressure
- 0.08-1.55 MPa || 11.6-225 psi || 0.8-15.5 bar
- Materials In Contact With Fluid
- ceramic || fluorocarbon FKM (Viton) || 316L stainless steel
- Minimum Differential Travel
- 0.48 bar || 48 kPa || 7 psi
- Contacts Type And Composition
- 2 NO/NC programmable
- Scale Type
- fixed differential
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- <= 0.6 % of the measuring range
- Adjustable Range Of Switching Point On Rising Pressure
- 18.6-232 psi || 1.28-16 bar || 0.128-1.6 MPa
- Width
- 41 mm
- Front Material
- polyester
- Depth
- 42 mm
- Discrete Output Type
- solid state PNP, 2 NO/NC programmable
Electrical Connectionmale connector M12, 4 pins
Accuracy<= 1 % of the measuring range
Display Response Time Typefast 50 ms || normal 200 ms || slow 600 ms
Repeat Accuracy<= 0.2 % of the measuring range
Time Delay Range0...50 s in steps of 1 second
Maximum Switching Current250 mA
Operating Positionany position, but disposals can falsified the measurement in case of upside down mounting
Net Weight0.19 kg
Current Consumption<= 50 mA
Maximum Delay First Up300 ms
Local Signallingfor light ON when switch is actuated 2 LEDs (yellow)
Housing Materialpolyacrylamide || 316L stainless steel
Protection Typeovervoltage protection || reverse polarity || short-circuit protection || overload protection
Drift Of The Sensitivity+/- 0.03 % of measuring range/°C
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Response Time On Output<= 5 ms discrete output
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- cULus || EAC
- Standards
- UL 61010-1 || EN/IEC 61326-2-3
- Marking
- CE
- Ip Degree Of Protection
- IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529
Ambient Air Temperature For Operation-20-80 °C
Shock Resistance50 gn EN/IEC 60068-2-27
Vibration Resistance20 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-80 °C
