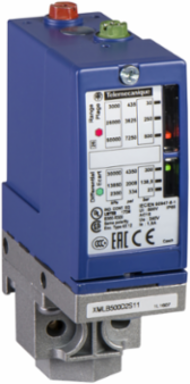

Telemecanique Sensors XMLB300D2S14 pressure switch XMLB 300 bar - adjustable scale 2 thresholds - 1 C/O

MPN: XMLB300D2S14
PPN: TES-XMLB300D2S14
UNSPSC: 39122210

$456.73

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

pressure switch XMLB 300 bar - adjustable scale 2 thresholds - 1 C/O

Documentation & Downloads

Specifications

Key Specifications

Contacts Type And Composition	1 C/O
Pressure Actuator	piston
Range Of Product	Telemecanique Pressure sensors XM
Pressure Switch Type Of Operation	regulation between 2 thresholds
Product Or Component Type	electromechanical pressure sensor
Materials In Contact With Fluid	brass \|\| FPM, FKM \|\| steel \|\| PTFE
Fluid Connection Type	PT 1/4 (female)
Controlled Fluid	hydraulic oil 0-160 °C)
Scale Type	adjustable differential
Enclosure Material	zinc alloy
Maximum Permissible Accidental Pressure	675 bar
Destruction Pressure	1350 bar

Pressure Sensor Type	electromechanical pressure sensor
Electrical Connection	screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
Line Rated Current	3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 \|\| 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 \|\| 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
Cable Entry	cable gland 7-13 mm
Adjustable Range Of Switching Point On Falling Pressure	2.6-263 bar
Local Display	with
Pressure Sensor Size	300 bar
Awg Gauge	AWG 20...AWG 14
Electrical Circuit Type	control circuit
Adjustable Range Of Switching Point On Rising Pressure	22-300 bar
Possible Differential Maximum At High Setting	200 bar
Device Short Name	XMLB

Complementary

Repeat Accuracy	2 %
Terminal Block Type	4 terminals
Contacts Material	silver contacts
Auxiliary Contacts Operation	snap action
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Maximum Operating Rate	60 cyc/mn
Setting	external
Width	35 mm
Maximum Resistance Across Terminals	25 mOhm IEC 255-7 category 3 \|\| 25 mOhm NF C 93-050 method A

Height	113 mm
Short-Circuit Protection	10 A cartridge fuse gG (gl)
Possible Differential Minimum At High Setting	37 bar - 1 bar, + 4 bar)
Net Weight	0.75 kg
Maximum Permissible Pressure - Per Cycle	375 bar
[Ui] Rated Insulation Voltage	300 V UL 508 \|\| 500 V EN/IEC 60947-1 \|\| 300 V CSA C22.2 No 14
Mechanical Durability	3000000 cycles
Depth	75 mm
Possible Differential Minimum At Low Setting	19.4 bar - 1.5 bar, + 1.7 bar)

Environment

Product Certifications	BV \|\| CSA \|\| EAC \|\| CCC \|\| UL \|\| LROS (Lloyds register of shipping)
Standards	CSA C22.2 No 14 \|\| CE \|\| EN/IEC 60947-5-1 \|\| UL 508
Shock Resistance	50 gn IEC 60068-2-27
Ambient Air Temperature For Storage	-40-70 °C
Operating Position	any position

Ambient Air Temperature For Operation	-25-70 °C
Vibration Resistance	4 gn 30-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 conforming to EN/IEC 60529
Protective Treatment	TC standard version
Electrical Shock Protection Class	class I IEC 1140 \|\| class I IEC 536 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110914EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
