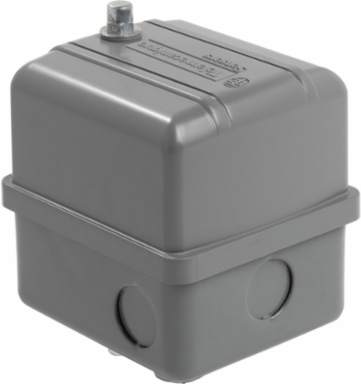

Telemecanique Sensors 9013GHG2S6J30X Square D Pumptrol, pressure switch 480 VAC 10 A g special
- MPN: 9013GHG2S6J30X
- UPC: 785901560074
- PPN: TES-9013GHG2S6J30X
CAD
$248.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, pressure switch 480 VAC 10 A g special
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Square D Pumptrol |
|---|---|
| Product Specific Application | control electrically driven water pumps and air compressors |
| Device Short Name | G |
| Enclosure Type | standard environment enclosure indoor |
|---|---|
| Factory Modification | 2-way pressure release valve |
| Switch Application | standard |
Complementary
| Electrical Connection | screw clamp terminal |
|---|---|
| Materials In Contact With Fluid | nitrile (Buna-N) diaphragm |
| Fluid Connection Type | 0.25 inch NPSF internal |
| Approximate Adjustable Differential | 20-40 psi |
| Fixing Mode | by brackets |
| Material | zinc plated steel flange |
| Range On Decreasing Pressure | 40-170 psi |
| Depth | 3.68 in |
| Net Weight | 2.25 lb(US) |
| Number Of Poles | 2 |
| Pressure Actuator | diaphragm |
|---|---|
| Height | 5.72 in |
| Pressure Setting Range | 80-100 psi |
| Maximum Pressure | 300 psig |
| Motor Power Hp | 2-2 hp 115 V AC, 1 phase || 3-3 hp 115 V AC, 3 phases || 3-3 hp 230 V AC, 1 phase || 5-5 hp 230 V AC, 3 phases || 5-5 hp 460/575 V AC, 1 phase || 5-5 hp 460/575 V AC, 3 phases |
| Switch Function | DPST |
| Width | 3.44 in |
| Adjustable Range On Rising Pressure | 65-200 psi |
| Permissible Voltage | 575 V AC |
Offer Sustainability
| Circularity Profile | ENVEOLI111210EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111211EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Environment
| Product Certifications | CSA file LR25490 || UL listed file E12158 CCN NKPZ |
|---|
| Nema Degree Of Protection | NEMA 1 |
|---|
