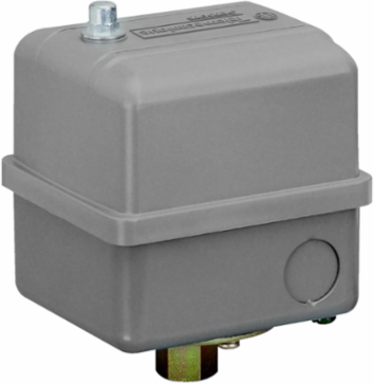

Telemecanique Sensors 9013GHG3J57X Square D Pumptrol, PRESSURE SWITCH 575 VAC 5 hp G +OPTIONS
- MPN: 9013GHG3J57X
- UPC: 785901559856
- PPN: TES-9013GHG3J57X
- UNSPSC: 39122210
CAD
$191.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, PRESSURE SWITCH 575 VAC 5 hp G +OPTIONS
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Product Specific Application
- control electrically driven water pumps and air compressors
- Device Short Name
- G
Enclosure Typestandard environment enclosure indoor
Factory Modification2-way pressure release valve
Switch Applicationstandard
Complementary
- Electrical Connection
- screw clamp terminal
- Materials In Contact With Fluid
- nitrile (Buna-N) diaphragm
- Fluid Connection Type
- 0.375 inch NPSF internal
- Approximate Adjustable Differential
- 20-40 psi
- Fixing Mode
- by brackets
- Material
- zinc plated steel flange
- Range On Decreasing Pressure
- 40-170 psi
- Depth
- 3.68 in
- Net Weight
- 2.25 lb(US)
- Number Of Poles
- 2
Pressure Actuatordiaphragm
Height5.72 in
Pressure Setting Range120-150 psi
Maximum Pressure300 psig
Motor Power Hp2-2 hp 115 V AC, 1 phase || 3-3 hp 115 V AC, 3 phases || 3-3 hp 230 V AC, 1 phase || 5-5 hp 230 V AC, 3 phases || 5-5 hp 460/575 V AC, 1 phase || 5-5 hp 460/575 V AC, 3 phases
Switch FunctionDPST
Width3.44 in
Adjustable Range On Rising Pressure65-200 psi
Permissible Voltage575 V AC
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158 CCN NKPZ
Nema Degree Of ProtectionNEMA 1
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
