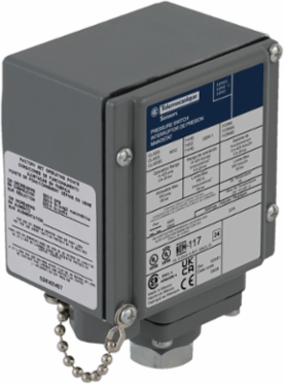

Telemecanique Sensors 9012GBW1Y1 Pressure switch 9012G, adjustable scale, 2 thresholds, 13 to 425 PSIG
- MPN: 9012GBW1Y1
- PPN: TES-9012GBW1Y1
- UNSPSC: 39122210
CAD
$594.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch 9012G, adjustable scale, 2 thresholds, 13 to 425 PSIG
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- electromechanical pressure switch
- Controlled Fluid
- hydraulic oil -40-250 °F) || non-corrosive liquids || air || non-corrosive gas
- Scale Type
- adjustable differential
- Pressure Switch Type Of Operation
- regulation between 2 thresholds
- Local Display
- without
- Fluid Connection Type
- 0.25 inch 18 NPTF UL 508
Pressure Sensor Size425 psi
Range Of Product9012G
Maximum Pressure850 psi
Contacts Type And CompositionNC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Pressure Sensor Name9012G
Complementary
- Repeat Accuracy
- 4 %
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Terminal Block Type
- 4 screw terminals
- Setting
- internal
- Variant Particularity
- specify factory setting
- Range On Decreasing Pressure
- 13-425 psi
- Operating Position
- any position
- Electrical Circuit Type
- control circuit
- Approx Adjustable Differential At Mid Range
- 16-90 psi +/- 2.5 % full scale
- Depth
- 2.63 in
- Net Weight
- 3 lb(US)
Height5.45 in
Maximum Operating Rate120 cyc/mn
Short-Circuit Protection10 A cartridge overload and short-circuit protection gL
Mechanical Durability5000000 cycles
Line Rated Current3 A 240 V AC A600 NEMA rating designation || 0.22 A 125 V DC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
Cable Entry0.5 inch NPT conduit entrance
Electrical Connectionscrew-clamp terminals, AWG 22...AWG 12
Enclosure Materialdie cast aluminium alloy 380
Width3.5 in
Materials In Contact With Fluidnitrile (Buna-N) || zinc plated steel
Local Signallingwithout
Environment
- Product Certifications
- CE || UL listed file E12158 CCN NKPZ and CCN NTHT
- Standards
- CSA C22.2 No 14 || CE || UL 508
- Shock Resistance
- 50 gn IEC 58-2-27
Ambient Air Temperature For Operation-10-185 °F
Nema Degree Of ProtectionNEMA 4/4X/13 UL 50
Vibration Resistance2 gn 40-150 Hz)IEC 68-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental DisclosureENVPEP111211EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
