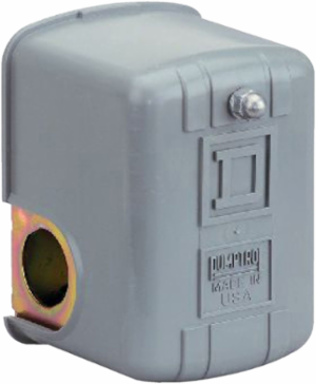

Telemecanique Sensors 9013FSW49J15 Square D Pumptrol, water pump switch 9013FS, adjustable diff., 5 21 PSI
- MPN: 9013FSW49J15
- UPC: 785901695455
- PPN: TES-9013FSW49J15
- UNSPSC: 39122210
CAD
$59.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Pumptrol, water pump switch 9013FS, adjustable diff., 5 21 PSI
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Pressure Sensor Name
- 9013FS
- Product Specific Application
- control electrically driven water pumps
- Electrical Circuit Type
- power circuit
Type Of Packingindividual
Value Of Setting5...21 psi
Quantity Per Set1
Pressure Sensor Size30 psi 3-10 psi)
Complementary
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Approximate Adjustable Differential
- 6-20 psi
- Terminals Description Iso N°1
- L1-T1 || L2-T2
- Repeat Accuracy
- +/- 3 %
- Maximum Operating Rate
- 10 cyc/mn
- Adjustable Range On Rising Pressure
- 9-30 psi
- Net Weight
- 1 lb(US)
- Fluid Connection Type
- 0.25 inch NPT external UL 508
- Electrical Connection
- screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
- Controlled Fluid
- fresh water -22-257 °F)
- Scale Type
- adjustable differential
- Material
- polypropylene Cover || noryl thermoplastic resin or equivalent Cover
- Width
- 2.78 in
- Motor Power Kw
- 1.5 kW 2 hp)230 V AC, 1 phase || 1.1 kW 1.5 hp)115 V AC, 1 phase || 1.5 kW 2 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)575 V AC, 3 phase
Pressure Actuatordiaphragm
Height2.8 in
Terminal Block Type4 terminals
Short-Circuit Protection20 A cartridge fuse gG
Pressure Switch Type Of Operationregulation between 2 thresholds
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Cable Entry Number2 0.88 in cable entries with 0.84 in across flats UL 508
[Ui] Rated Insulation Voltage575 V UL 508
Settinginternal
Mechanical Durability300000 cycles
Operating Positionvertical position
Depth3.76 in
Destruction Pressure220 psi
Environment
- Product Certifications
- UL listed file E12158 || CSA file LR25490
- Standards
- CE || NSF ANSI 61 Annex G || UL 508
- Ambient Air Temperature For Storage
- -33-257 °F
- Protective Treatment
- none
Ambient Air Temperature For Operation-33-257 °F
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 3R UL 50
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111211EN
- Circularity Profile
- ENVEOLI111210EN
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
