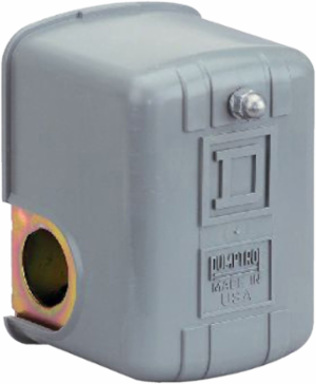

Telemecanique Sensors 9013FHG2J99P Square D Pumptrol, air compressor switch 9013FH, fixed differential, factory setting, low hp

MPN: 9013FHG2J99P
UPC: 785901775058
PPN: TES-9013FHG2J99P

$42.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D Pumptrol, air compressor switch 9013FH, fixed differential, factory setting, low hp

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Square D Pumptrol
Product Specific Application	control small electrically driven air compressors
Electrical Circuit Type	power circuit
Type Of Packing	individual

Value Of Setting	specify pressure settings
Quantity Per Set	1
Pressure Sensor Size	100 psi
Pressure Sensor Name	9013FH

Complementary

Cable Entry Number	2 0.88 in cable entries with 0.84 in across flats UL 508
Pressure Sensor Type	electromechanical pressure switch
Materials In Contact With Fluid	zinc plated steel or equivalent flange \|\| nitrile (Buna-N) or equivalent rubber diaphragm
Terminal Block Type	4 terminals
[Ui] Rated Insulation Voltage	575 V UL 508
Short-Circuit Protection	20 A cartridge fuse gG
Setting	internal
Scale Type	fixed differential
Material	polypropylene cover \|\| noryl thermoplastic resin or equivalent cover
Factory Modification	pulsation plug
Maximum Operating Rate	10 cyc/mn
Width	2.78 in
Motor Power Kw	1.5 kW 2 hp)230 V AC, 1 phase \|\| 1.1 kW 1.5 hp)115 V AC, 1 phase \|\| 1.5 kW 2 hp)115 V AC, 3 phases \|\| 2.2 kW 3 hp)230 V AC, 3 phases \|\| 0.75 kW 1 hp)460 V AC, 3 phases \|\| 0.75 kW 1 hp)575 V AC, 3 phases
Destruction Pressure	220 psi
Net Weight	1 lb(US)
Fluid Connection Type	0.25 inch NPSF internal UL 508

Electrical Connection	screw-clamp terminals 10 AWG \|\| screw-clamp terminals 5.261 mm²
Pressure Actuator	diaphragm
Height	2.8 in
Terminals Description Iso N°1	L2-T2 \|\| L1-T1
Controlled Fluid	air -22-257 °F)
Repeat Accuracy	+/- 3 %
Approximate Fixed Differential	20 psi
Mechanical Durability	300000 cycles
Pressure Switch Type Of Operation	regulation between 2 thresholds
Operating Position	any position
Contacts Type And Composition	2 NC, snap action, DPST-DB, Form YY
Depth	3.76 in
Adjustable Range On Rising Pressure	40-100 psi
Local Display	without
Electrical Durability	100000 cycles 10 cyc/mn

Environment

Product Certifications	UL listed file E12158 \|\| CSA file LR25490
Ambient Air Temperature For Storage	-33-257 °F
Nema Degree Of Protection	NEMA 1 UL 50
Ip Degree Of Protection	IP20 IEC 60529
