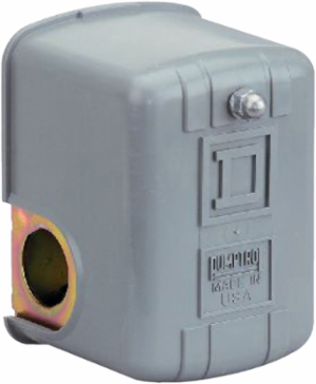

Telemecanique Sensors 9013FHG49J59 Pressure switch, 9013FHG, pressure setting 175 psi, fixed differential, for air compressor, low HP, fluid connection type 0.25 inch NPT external conforming to UL 508
- MPN: 9013FHG49J59
- UPC: 785901000914
- PPN: TES-9013FHG49J59
CAD
$40.93
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch, 9013FHG, pressure setting 175 psi, fixed differential, for air compressor, low HP, fluid connection type 0.25 inch NPT external conforming to UL 508
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Pressure actuator | Diaphragm |
| Scale type | Fixed differential |
| Local display | Without |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm² |
| Materials in contact with fluid | Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm |
| Operating position | Any position |
| Operating rate | 10 cycles/min |
| Terminals description ISO n°1 | L1-T1 L2-T2 |
| Controlled fluid | Air (32-158 °F) |
|---|---|
| Pressure switch type of operation | Regulation between 2 thresholds |
| Setting | Internal |
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Fluid connection type | 0.25 inch NPT external conforming to UL 508 |
| Material | Polypropylene: cover, noryl thermoplastic resin or equivalent: cover |
| Terminal block type | 4 terminals |
| Repeat accuracy | +/- 3 % |
Main
| Range of product | Pumptrol |
|---|---|
| Value of setting | Off at 175 psi |
| Product specific application | Control small electrically driven air compressors |
| Type of packing | Individual |
| Pressure sensor name | 9013FH |
|---|---|
| Electrical circuit type | Power circuit |
| Quantity per set | 1 |
Environment
| Standards | CE UL 508 |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
|---|---|
| Product certifications | CSA UL listed |
