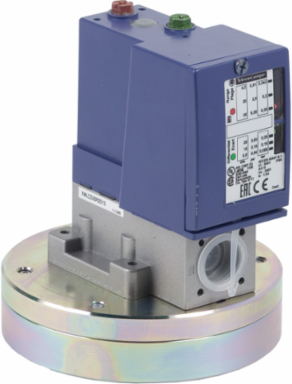

Telemecanique Sensors XMLCS35R2S13 PRESSURE SWITCH ADJUST SCALE 2 THRESHOLD 30 Bar max

This product is part of the XML pressure sensors and switches range. This pressure switch controls or regulates pressure levels in air and hydraulic systems. It transforms the pressure change into a digital electrical signal when the preset operating points are reached. These pressure switches are used for pressure control or monitoring on water pumps, compressors, molding presses, injection molders, grinding machines, machining centers. It is suitable for controlling hydraulic oils, fresh water and air (0 °C to 160 °C). These switches have an adjustable differential and are designed for regulation between two thresholds. It incorporates two C/O contacts. Pressure range is 0.61psi to 4.79psi on increasing pressure and 0.03psi and 3.51psi on decreasing pressure. It has a 1/4in NPTF (female) connection for fluid connection. It has a diaphragm actuator. It offers a long mechanical life with a mechanical durability of about 2 million operating cycles. It is an IP66 rated product. The enclosure is made of zinc alloy. It is compliant with UL, CSA, EN/IEC, EAC, and CE standards and is IP66 rated. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
