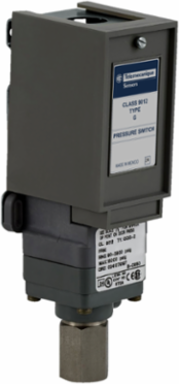

Telemecanique Sensors 9012GPG2 Pressure switch, 9012G, pressure range 20 to 675 psig, adjustable scale, 2 thresholds, Nitrile (Buna-N)
- MPN: 9012GPG2
- UPC: 785901476474
- PPN: TES-9012GPG2
CAD
$484.17
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch, 9012G, pressure range 20 to 675 psig, adjustable scale, 2 thresholds, Nitrile (Buna-N)
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Cable entry | 0.5 inch NPT conduit entrance |
|---|---|
| Electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
| Electrical circuit type | Control circuit |
| Setting | Internal |
| Pressure actuator | Diaphragm nitrile (Buna-N) |
| Materials in contact with fluid | Nitrile (Buna-N) |
| Terminal block type | 4 screw terminals |
|---|---|
| Terminal identifier | (2-4)NC (3)gnd |
| Local signalling | Without: |
| Enclosure material | Thermoplastic |
| Operating position | Any position |
| Operating rate | 120 cyc/mn |
Main
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Contacts type and composition | NC-NO, SPDT, Form C, snap action, silver nickel contacts |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Scale type | Adjustable differential |
| Maximum pressure | 2000 psi |
|---|---|
| Controlled fluid | Hydraulic oil (-40-250 °F), non-corrosive liquids (-40-250 °F), air (-40-250 °F), non-corrosive gas (-40-250 °F) |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Local display | Without |
Environment
| Vibration resistance | 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
|---|---|
| Standards | CE CSA C22.2 No 14 UL 508 |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
| Shock resistance | 50 gn conforming to IEC 58-2-27 |
|---|---|
| Product certifications | CSA LR25490 class 3211 03 UL listed |
