Telemecanique Sensors 9013FHG29J27 Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 100 PSI, high hp
- MPN: 9013FHG29J27
- UPC: 785901000709
- PPN: TES-9013FHG29J27
CAD
$59.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

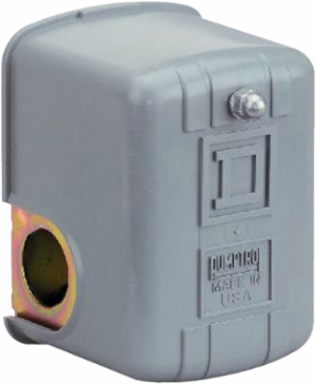

Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 100 PSI, high hp
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Square D Pumptrol
- Product Specific Application
- control small electrically driven air compressors
- Electrical Circuit Type
- power circuit
- Type Of Packing
- individual
Value Of Settingoff at 100 psi
Quantity Per Set1
Pressure Sensor Size100 psi
Pressure Sensor Name9013FH
Complementary
- Cable Entry Number
- 2 0.88 in cable entries with 0.84 in across flats UL 508
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Terminal Block Type
- 4 terminals
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Setting
- internal
- Scale Type
- fixed differential
- Material
- polypropylene cover || noryl thermoplastic resin or equivalent cover
- Operating Position
- any position
- Contacts Type And Composition
- 2 NC, snap action, DPST-DB, Form YY
- Depth
- 3.76 in
- Adjustable Range On Rising Pressure
- 40-100 psi
- Local Display
- without
- Electrical Durability
- 100000 cycles 10 cyc/mn
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Pressure Actuatordiaphragm
Height3.92 in
Terminals Description Iso N°1L2-T2 || L1-T1
Controlled Fluidair -22-257 °F)
Repeat Accuracy+/- 3 %
Approximate Fixed Differential20 psi
Mechanical Durability300000 cycles
Pressure Switch Type Of Operationregulation between 2 thresholds
Maximum Operating Rate10 cyc/mn
Width2.78 in
Motor Power Kw1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phases || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phases
Destruction Pressure220 psi
Net Weight1 lb(US)
Fluid Connection Type0.25 inch NPT external UL 508
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Ambient Air Temperature For Storage
- -33-257 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-33-257 °F
StandardsUL 508 || CE
Protective Treatmentnone
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Environmental DisclosureENVPEP111211EN
