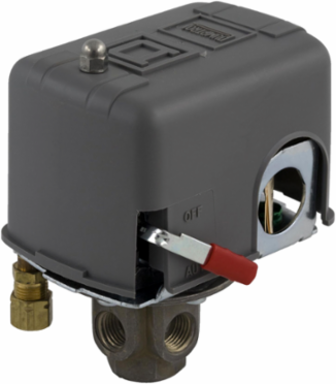

Telemecanique Sensors 9013FHG24J27M1X Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 100 PSI, high hp
Telemecanique Sensors 9013FHG24J27M1X Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 100 PSI, high hp
- MPN: 9013FHG24J27M1X
- UPC: 785901106333
- PPN: TES-9013FHG24J27M1X
- UNSPSC: 39122210
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$94.68/ EA
Description
Square D Pumptrol, air compressor switch 9013FH, fixed differential, Off at 100 PSI, high hp
Specifications
Environment
- Product Certifications
- CSA file LR25490 || UL listed file E12158
- Ambient Air Temperature For Storage
- -33-257 °F
- Nema Degree Of Protection
- NEMA 1 UL 50
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
Ambient Air Temperature For Operation-33-257 °F
StandardsUL 508 || CE
Protective Treatmentnone
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI111210EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Environmental DisclosureENVPEP111211EN
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Cable Entry Number
- 2 0.88 in cable entries with 0.84 in across flats UL 508
- Pressure Sensor Type
- electromechanical pressure switch
- Materials In Contact With Fluid
- zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
- Terminal Block Type
- 4 terminals
- [Ui] Rated Insulation Voltage
- 575 V UL 508
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Setting
- internal
- Scale Type
- fixed differential
- Material
- polypropylene Cover || noryl thermoplastic resin or equivalent Cover
- Factory Modification
- maintained manual cut-out lever (AUTO-OFF) || 2-way pressure release valve
- Maximum Operating Rate
- 10 cyc/mn
- Width
- 3.1 in
- Motor Power Kw
- 1.5 kW 2 hp)230 V AC, 1 phase || 1.1 kW 1.5 hp)115 V AC, 1 phase || 1.5 kW 2 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)575 V AC, 3 phase
- Destruction Pressure
- 220 psi
- Net Weight
- 1 lb(US)
- Fluid Connection Type
- 0.25 inch 4-way flange UL 508
Electrical Connectionscrew-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
Pressure Actuatordiaphragm
Height4.45 in
Terminals Description Iso N°1L2-T2 || L1-T1
Controlled Fluidair -22-257 °F)
Repeat Accuracy+/- 3 %
Approximate Fixed Differential20 psi
Mechanical Durability300000 cycles
Pressure Switch Type Of Operationregulation between 2 thresholds
Operating Positionany position
Contacts Type And Composition2 NC, snap action, DPST-DB, Form YY
Depth3.76 in
Adjustable Range On Rising Pressure40-100 psi
Local Displaywithout
Electrical Durability100000 cycles 10 cyc/mn
Specifications
- Range Of Product
- Square D Pumptrol
- Product Specific Application
- control small electrically driven air compressors
- Electrical Circuit Type
- power circuit
- Type Of Packing
- individual
Value Of Settingoff at 100 psi
Quantity Per Set1
Pressure Sensor Size100 psi
Pressure Sensor Name9013FH
