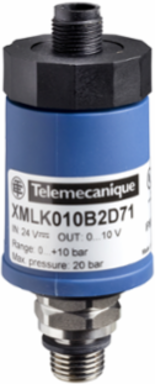

Telemecanique Sensors XMLK010B2D71 Electronic pressure sensors, Pressure sensors XM, sensor XMLK, 0...10 bar, G 1/4 A, 0...10 V, M12, set of 1
- MPN: XMLK010B2D71
- PPN: TES-XMLK010B2D71
CAD
$149.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, sensor XMLK, 0...10 bar, G 1/4 A, 0...10 V, M12, set of 1
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Size
- 10-10 bar
- Type Of Packing
- individual
- Pressure Sensor Name
- XMLK
- Fluid Connection Type
- G 1/4A (male) DIN 3852-E
- Controlled Fluid
- air 0-80 °C) || fresh water 0-80 °C)
- Electrical Circuit Type
- control circuit
Type Of Output Signalanalogue
Electrical Connection1 male connector M12 4 pins
Product Or Component Typeelectronic pressure sensors
Local Displaywithout
Current Consumption< 6 mA
Analogue Output Function0...10 V, 3-wire
Quantity Per Setset of 1
[Us] Rated Supply Voltage24 V DC SELV 16.2-33 V)
Complementary
- Accuracy
- 0.1 % of the measuring range
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.03 % of measuring range/°K
- Materials In Contact With Fluid
- stainless steel type AISI 303 || nitrile (NBR) || ceramic
- Net Weight
- 0.11 kg
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- +/- 1 % of the measuring range
- Drift Of The Sensitivity
- +/- 0.04 % of measuring range/°K
- Destruction Pressure
- 30 bar
- Pressure Setting Range
- 0-10 bar
Diameter36 mm
Repeat Accuracy+/- 1 % of the measuring range
Electromagnetic Compatibilityelectrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 6 kV contact || susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...1000 MHz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 2 kV || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm || radiated RF fields EN/IEC 61000-4-6 10 V 0.15...80 MHz || immunity to magnetic fields EN/IEC 61000-4-8 30 A/m 50 Hz
Length67.5 mm
Scale Typefixed differential
Operating Positionany position
Protection Typeload short-circuit || reverse polarity
Maximum Permissible Accidental Pressure20 bar
Response Time On Output< 5 ms
Environment
- Product Certifications
- CSA C22.2 No 14 || EAC || RCM || UL 508
- Standards
- EN/IEC 61326-2-3 || CE
- Vibration Resistance
- 20 gn 9-2000 Hz) EN/IEC 60068-2-6
- Nema Degree Of Protection
- NEMA 4
- Protective Treatment
- TC
Ambient Air Temperature For Operation0-80 °C
Shock Resistance25 gn 11 ms EN/IEC 60068-2-27
Ip Degree Of ProtectionIP65 EN/IEC 60529
Ambient Air Temperature For Storage-25-80 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
