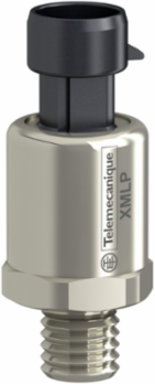

Telemecanique Sensors XMLP100PP230 pressure transmitter - XMLP - 100psi - 1/4"18NPT - 4..20mA - Packard - set 1
- MPN: XMLP100PP230
- PPN: TES-XMLP100PP230
- UNSPSC: 41111927
CAD
$205.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
pressure transmitter - XMLP - 100psi - 1/4"18NPT - 4..20mA - Packard - set 1
Documentation & Downloads
Specifications
Key Specifications
| Pressure Sensor Type | pressure transmitter |
|---|---|
| Type Of Output Signal | analogue |
| Range Of Product | Telemecanique Pressure sensors XM |
| Pressure Sensor Size | 100-100 psi |
| Electrical Circuit Type | control circuit |
| Type Of Packing | individual |
| Local Display | without |
| Current Consumption | < 23 mA |
| Analogue Output Function | 4...20 mA, 2-wire |
|---|---|
| Controlled Fluid | fresh water 0-135 °C) || air -40-135 °C) || hydraulic oil -40-135 °C) || gas -40-135 °C) || refrigeration fluid -40-135 °C) |
| Electrical Connection | 1 male connector Packard Metripack 150 3 pins |
| Quantity Per Set | set of 1 |
| Product Or Component Type | electronic pressure sensors |
| [Us] Rated Supply Voltage | 12...24 V DC SELV 7-33 V) |
| Pressure Sensor Name | XMLP |
| Fluid Connection Type | 1/4" - 18 NPT (male) |
Complementary
| Accuracy | 0.1 % of the measuring range |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV |
| Drift Of The Zero Point | +/- 0.02 % of measuring range/°K |
| Measurement Accuracy | +/- 0.5 % of the measuring range |
| Protection Type | load short-circuit || reverse polarity |
| Maximum Permissible Accidental Pressure | 300 psi |
| Length | 55 mm |
| Net Weight | 0.09 kg |
| Pressure Setting Range | 0-100 psi |
| Diameter | 26 mm |
|---|---|
| Mechanical Durability | 10000000 cycles |
| Operating Position | any position |
| Electromagnetic Compatibility | electrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 4 kV || susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...3000 MHz || radiated RF fields EN/IEC 61000-4-6 10 V 0.01...80 MHz |
| Drift Of The Sensitivity | +/- 0.02 % of measuring range/°K |
| Materials In Contact With Fluid | stainless steel AISI 316L |
| Destruction Pressure | 900 psi |
| Response Time On Output | <= 2 ms 10...90 % of full scale |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1511013EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
Environment
| Product Certifications | cULus || EAC || RCM || CE |
|---|---|
| Ambient Air Temperature For Storage | -50-100 °C |
| Shock Resistance | 100 gn 11 ms EN/IEC 60068-2-27 |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -30-85 °C |
|---|---|
| Standards | NSF ANSI 61 || EN/IEC 61326-2-3 |
| Vibration Resistance | 20 gn 15-2000 Hz) EN/IEC 60068-2-6 |
| Ip Degree Of Protection | IP65 EN/IEC 60529 || IP67 EN/IEC 60529 |
