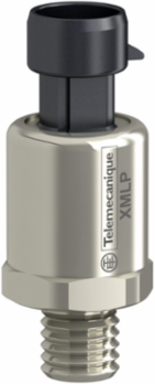

Telemecanique Sensors XMLP300PP730 Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 300 PSI, 1/4"18NPT, 0...10 V, Packard, set 1
- MPN: XMLP300PP730
- PPN: TES-XMLP300PP730
CAD
$205.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 300 PSI, 1/4"18NPT, 0...10 V, Packard, set 1
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Size
- 300-300 psi
- Electrical Circuit Type
- control circuit
- Type Of Packing
- individual
- Local Display
- without
- Current Consumption
- < 7 mA
Analogue Output Function0...10 V, 3-wire
Controlled Fluidfresh water 0-135 °C) || air -40-135 °C) || hydraulic oil -40-135 °C) || gas -40-135 °C) || refrigeration fluid -40-135 °C)
Electrical Connection1 male connector Packard Metripack 150 3 pins
Quantity Per Setset of 1
Product Or Component Typeelectronic pressure sensors
[Us] Rated Supply Voltage24 V DC SELV 12-33 V)
Pressure Sensor NameXMLP
Fluid Connection Type1/4" - 18 NPT (male)
Complementary
- Accuracy
- 0.1 % of the measuring range
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.02 % of measuring range/°K
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Protection Type
- load short-circuit || reverse polarity
- Maximum Permissible Accidental Pressure
- 900 psi
- Length
- 55 mm
- Net Weight
- 0.09 kg
- Pressure Setting Range
- 0-300 psi
Diameter26 mm
Mechanical Durability10000000 cycles
Operating Positionany position
Electromagnetic Compatibilityelectrical fast transient/burst immunity test EN/IEC 61000-4-4 2 kV || electrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz || susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...3000 MHz || radiated RF fields EN/IEC 61000-4-6 10 V 0.01...80 MHz
Drift Of The Sensitivity+/- 0.02 % of measuring range/°K
Materials In Contact With Fluidstainless steel AISI 316L
Destruction Pressure2200 psi
Response Time On Output<= 2 ms 10...90 % of full scale
Environment
- Product Certifications
- CE || cULus || EAC || RCM
- Ambient Air Temperature For Storage
- -50-100 °C
- Shock Resistance
- 100 gn 11 ms EN/IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-30-85 °C
StandardsEN/IEC 61326-2-3 || NSF ANSI 61
Vibration Resistance20 gn 15-2000 Hz) EN/IEC 60068-2-6
Ip Degree Of ProtectionIP65 EN/IEC 60529 || IP67 EN/IEC 60529
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
