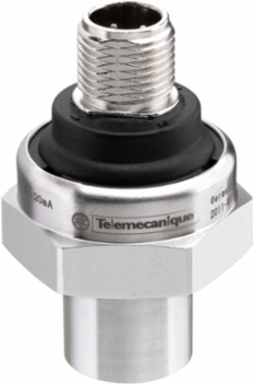

Telemecanique Sensors XMLPM3CPD290 Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP -15 to +300 PSI, 7/16 female, 4...20 mA, M12, set 1
Telemecanique Sensors XMLPM3CPD290 Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP -15 to +300 PSI, 7/16 female, 4...20 mA, M12, set 1
- MPN: XMLPM3CPD290
- PPN: TES-XMLPM3CPD290
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$205.62/ EA
Specifications
Complementary
- Accuracy
- 0.1 % of the measuring range
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.02 % of measuring range/°K
- Measurement Accuracy
- +/- 0.5 % of the measuring range
- Protection Type
- load short-circuit || reverse polarity
- Maximum Permissible Accidental Pressure
- 600 psi
- Length
- 44 mm
- Net Weight
- 0.1 kg
- Pressure Setting Range
- -14.5-300 psi
Diameter26 mm
Mechanical Durability10000000 cycles
Operating Positionany position
Electromagnetic Compatibilityelectrostatic discharge immunity test EN/IEC 61000-4-2 8 kV air, 4 kV contact || 1.2/50 µs shock waves immunity test EN/IEC 61000-4-5 1 kV 42 Ohm || immunity to magnetic fields EN/IEC 61000-4-8 100 A/m 50 Hz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 4 kV || susceptibility to electromagnetic fields EN/IEC 61000-4-3 10 V/m 80...3000 MHz || radiated RF fields EN/IEC 61000-4-6 10 V 0.01...80 MHz
Drift Of The Sensitivity+/- 0.02 % of measuring range/°K
Materials In Contact With Fluidfluorocarbon FPM || stainless steel AISI 316L
Destruction Pressure2200 psi
Response Time On Output<= 2 ms 10...90 % of full scale
Environment
- Product Certifications
- EAC || cULus || RCM || CE
- Ambient Air Temperature For Storage
- -50-100 °C
- Shock Resistance
- 100 gn 11 ms EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529 || IP69K conforming to EN/IEC 60529
Ambient Air Temperature For Operation-30-85 °C
StandardsEN/IEC 61326-2-3 || NSF ANSI 61
Vibration Resistance20 gn 15-2000 Hz) EN/IEC 60068-2-6
Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Size
- -14.5-300 psi
- Electrical Circuit Type
- control circuit
- Type Of Packing
- individual
- Local Display
- without
- Current Consumption
- < 23 mA
Analogue Output Function4...20 mA, 2-wire
Controlled Fluidair -30-135 °C) || fresh water 0-135 °C) || hydraulic oil -30-135 °C) || gas -30-135 °C) || refrigeration fluid -30-135 °C)
Electrical Connection1 male connector M12 4 pins
Quantity Per Setset of 1
Product Or Component Typeelectronic pressure sensors
[Us] Rated Supply Voltage12...24 V DC SELV 7-33 V)
Pressure Sensor NameXMLP
Fluid Connection TypeSAE 7/16-20UNF-2B (female) with schrader
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
