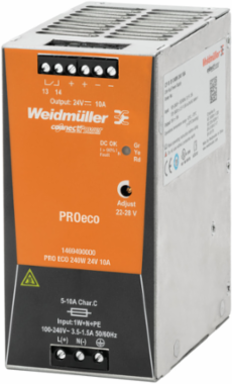

Weidmuller 1469590000 PRO ECO 240W 48V 5A
- MPN: 1469590000
- PPN: WDM-1469590000
CAD
$429.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power supply, switch-mode power supply unit, 48 V
Documentation & Downloads
Specifications
General Data
- AC failure bridging time @ I
- > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
- Earth leakage current, max.
- 3.5 mA
- Indication
- Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC)
- Max. perm. air humidity (operational)
- 5 %…95 % RH
- Operating temperature
- -25 °C...70 °C
- Power loss, idling
- 3 W
- Protection against over-heating
- Yes
- Protection degree
- IP20
Degree of efficiency92 %
Housing versionMetal, corrosion resistant
MTBF> 500,000 h in accordance with IEC 61709 (SN29500)
Mounting position, installation noticeon terminal rail TS 35
Power factor (approx.)> 0.94 @ 230 V AC / > 0.99 @ 115 V AC
Power loss, nominal load23 W
Protection against reverse voltages from the load58…65 V DC
Short-circuit protectionYes
Signalling
- Contact load (NO contact)
- max. 30 V DC / 1 A
- Relay on/off
- Output voltage >21.6 V DC/ <20.4 V DC, overload
Floating contactYes
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , min.
- 0.5 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Number of terminals
- 3 for L/N/PE
- Tightening torque, min.
- 0.5 Nm
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, rigid , max.6 mm²
Connection systemScrew connection
Tightening torque, max.0.6 Nm
Wire connection cross section, flexible (input), max.2.5 mm²
Approvals
- Approvals
- CE, CULUS, EAC
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 60 mm
- Height
- 125 mm
- Depth
- 100 mm
- Net weight
- 1.014 g
Width (inches)2.362 inch
Height (inches)4.921 inch
Depth (inches)3.937 inch
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- Protection against dangerous shock currents
- Acc. to VDE0106-101
- Safety extra-low voltage
- SELV according to EN 60950, PELV according to EN 60204
For use with electronic equipmentAcc. to EN50178 / VDE0160
Protective separation / protection against electrical shockVDE0100-410 / acc. to DIN57100-410
Safety transformers for switch-mode power suppliesAccording to EN 61558-2-16
Emc / Shock / Vibration
- Limiting of mains voltage harmonic currents
- According to EN 61000-3-2
- Vibration resistance IEC 60068-2-6
- 1 g according to EN 50178
- Shock resistance IEC 60068-2-27
- 15 g In all directions
Noise emission in accordance with EN55032Class B
Interference immunity test acc. toEN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (burst), EN 61000-4-5 (surge), EN 61000-4-6 (conducted), EN61000-4-8 (Fields), EN61000-4-11 (Dips)
Input
- AC current consumption
- 1.2 A @ 230 V AC / 2.4 A @ 115 V AC
- Connection system
- Screw connection
- DC input voltage range

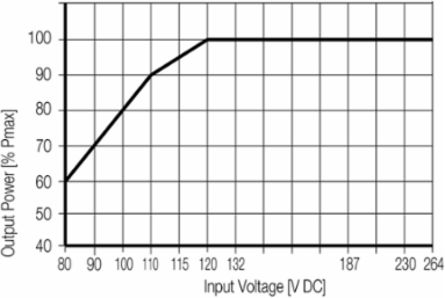

- 80...370 V DC (Derating @ 120 V DC)
- Input frequency
- 47...63 Hz
- Inrush current
- Max. 10 A
- Recommended back-up fuse
- 4 A / DI, safety fuse10 A, Char. B, circuit breaker3...4 A, Char. C, circuit breaker

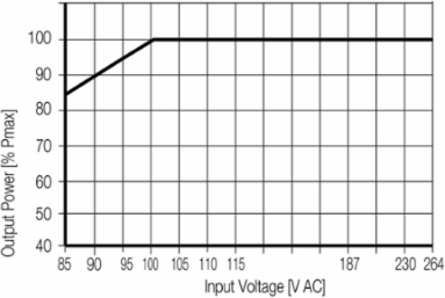

AC input voltage range85...264 V AC (derating at 100 V AC)
DC current consumption1.2 A @ 370 V DC / 2.4 A @ 120 V DC
Frequency range AC47...63 Hz
Input fuse (internal)Yes
Rated input voltage100...240 V AC (wide-range input)
Surge protectionVaristor
Classifications
- ETIM 6.0
- EC002540
- eClass 9.0
- 27-04-07-01
- eClass 10.0
- 27-04-07-01
ETIM 7.0EC002540
eClass 9.127-04-07-01
Output
- Capacitive load
- unrestricted
- Continous output current @ U

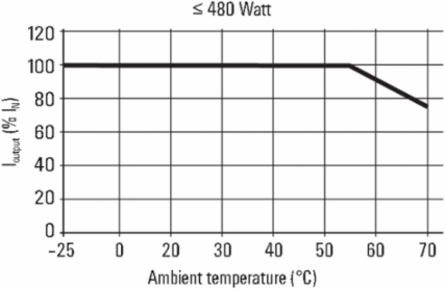

- 5 A @ 55 °C, 3,75 A @ 70 °C
- Output power
- 240 W
- Overload protection
- Yes
- Protection against inverse voltage
- Yes
- Rated output voltage
- 48 V DC ± 1 %
Connection systemScrew connection
Nominal output current for U5 A at 55 °C
Output voltage42...56 V (adjustable via potentiometer)
Parallel connection optionyes, max. 5
Ramp-up time≤ 100 ms
Residual ripple, breaking spikes< 100 mV ss @ 48 V DC, I Nenn
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Insulation voltage input / earth
- 2 kV
- Insulation voltage, input/output
- 3 kV
- Protection class
- I, with PE connection
Insulation voltage output / earth0.5 kV
Pollution severity2
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 6 mm²
- Connection system
- Screw connection
- Tightening torque, max.
- 0.6 Nm
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, flexible , min.0.5 mm²
Conductor cross-section, rigid , min.0.5 mm²

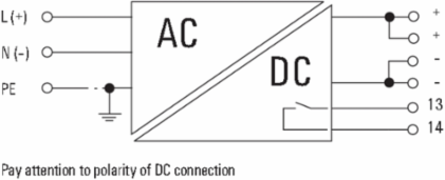

Number of terminals6 (++,--,13,14)
Tightening torque, min.0.5 Nm
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...70 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
