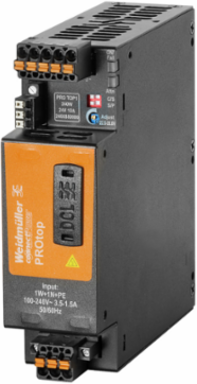

Weidmuller 2466880000 PRO TOP1 240W 24V 10A
- MPN: 2466880000
- PPN: WDM-2466880000
CAD
$449.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Power supply, switch-mode power supply unit, 24 V
Documentation & Downloads
Specifications
General Data
- AC failure bridging time @ I
- > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
- Degree of efficiency
- 92 %
- Earth leakage current, max.
- 3.5 mA
- MTBF
- > 1.000.000 h according IEC 1709 (SN29500)
- Operating temperature
- -25 °C...70 °C
- Power loss, idling
- 5 W
- Protection degree
- IP20
- Short-circuit protection
- Yes, internal
- Surge voltage category
- III
Conformal coatingNo

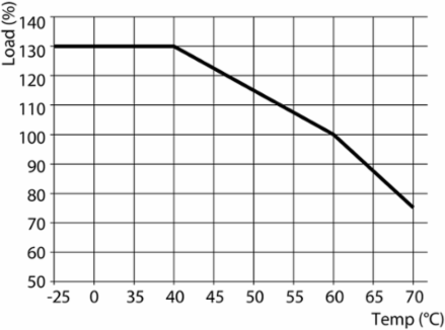

Derating> 60°C (2.5% / 1°C)
Housing versionMetal, corrosion resistant
Mounting position, installation noticeHorizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load
Power factor (approx.)> 0.9
Power loss, nominal load20.8 W
Series switching capabilityYes
Start-up≥ -40 °C
Signalling
- LED green/red
- Green: Operation (failure-free), Flashing green: advance warning I>90%, Green/red flashing: output switched off (switch-off mode), Flashing red: overload/error
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , min.
- 0.5 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Number of terminals
- 3 for L/N/PE
- Wire connection cross section, flexible (input), max.
- 2.5 mm²
Conductor cross-section, AWG/kcmil , min.20
Conductor cross-section, rigid , max.1.5 mm²
Connection systemPUSH IN with actuator
Screwdriver blade0.6 x 3.5
Approvals
- Approvals
- CULUS, CULUSEX, DNV GL, TUEV
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 39 mm
- Height
- 130 mm
- Depth
- 125 mm
- Net weight
- 1,050 g
Width (inches)1.535 inch
Height (inches)5.118 inch
Depth (inches)4.921 inch
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- Protection against dangerous shock currents
- Acc. to VDE0106-101
- Safety extra-low voltage
- SELV according to EN 60950, PELV according to EN 60204
For use with electronic equipmentAcc. to EN50178 / VDE0160
Protective separation / protection against electrical shockVDE0100-410 / acc. to DIN57100-410
Safety transformers for switch-mode power suppliesAccording to EN 61558-2-16
Emc / Shock / Vibration
- Noise emission in accordance with EN55032
- Class B
- Interference immunity test acc. to
- EN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011
Vibration resistance IEC 60068-2-62.3 g (on DIN rail), 4 g (with direct mounting)
Shock resistance IEC 60068-2-2730 g in all directions
Input
- AC input voltage range
- 85…277 V AC
- DC input voltage range
- 80 ... 410 V DC
- Frequency range AC
- 45…65 Hz
- Inrush current
- max. 5 A
- Recommended back-up fuse
- 5 A, DI / 6 A, Char. B / 6 A, Char C
Connection systemPUSH IN with actuator
Dielectric strengthmax. 300 V AC ≤ 15 s
Input fuse (internal)Yes
Rated input voltage100 - 240 V AC / 120 - 340 V DC
Surge protectionVaristor
Classifications
- ETIM 6.0
- EC002540
- eClass 9.0
- 27-04-07-01
- eClass 10.0
- 27-04-07-01
ETIM 7.0EC002540
eClass 9.127-04-07-01
Output
- DCL - peak load reserve
- 150 % (5 s); 600 % (15 ms)
- Mains failure bridge-over time
- > 20 ms @ 115V AC/ 230 VAC
- Output power
- 240 W
- Parallel connection option
- yes, max 10
- Ramp-up time
- ≤ 100 ms
- Reserve capacity @ U
- 130% permanent at ≤ 40°C, 150 % (5 s)
- Triggerable circuit breakers
- C2, C4, B6
Connection systemPUSH IN with actuator
Nominal output current for U10 A @ 60 °C
Output voltage22.5...28.8 V
Protection against inverse voltageYes
Rated output voltage24 V DC ± 1 %
Residual ripple, breaking spikes< 50 mVss @ UNenn, Full Load
Connection Data (Signal)
- Wire connection cross-section, flexible (signal), max.
- 1.5 mm²
- Wire connection method
- PUSH IN
- Wire cross-section, AWG/kcmil , min.
- 26
- Wire cross-section, solid , min.
- 0.14 mm²
Wire connection cross-section, flexible (signal), min.0.14 mm²
Wire cross-section, AWG/kcmil , max.16
Wire cross-section, solid , max.1.5 mm²
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Humidity at operating temperature
- 5...95 %, no condensation
- Insulation voltage output / earth
- 0.5 kV
- Pollution severity
- 2
- Surge voltage category
- III
Insulation voltage input / earth3.2 kV
Insulation voltage, input/output3.5 kV
Protection classI, with PE connection
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Connection system
- PUSH IN with actuator
- Screwdriver blade
- 0.6 x 3.5
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, flexible , min.0.2 mm²
Conductor cross-section, rigid , min.0.2 mm²
Number of terminals5 (+ + / - - -)
Temperatures
- Humidity at operating temperature
- 5...95 %, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
