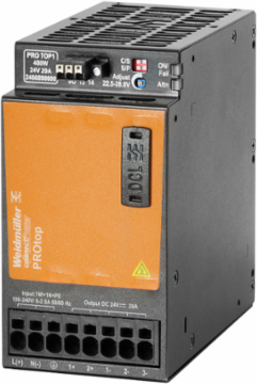

Weidmuller 2466890000 PRO TOP1 480W 24V 20A

  • MPN: 2466890000
  • PPN: WDM-2466890000

CAD

$499.55

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Power supply, switch-mode power supply unit, 24 V

Documentation & Downloads

Specifications

General Data

AC failure bridging time @ I> 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of efficiency93%
Earth leakage current, max.3.5 mA
MTBF> 1.000.000 h according IEC 1709 (SN29500)
Operating temperature-25 °C...70 °C
Power loss, idling10 W
Protection degreeIP20
Short-circuit protectionYes, internal
Surge voltage categoryIII
Conformal coatingNo

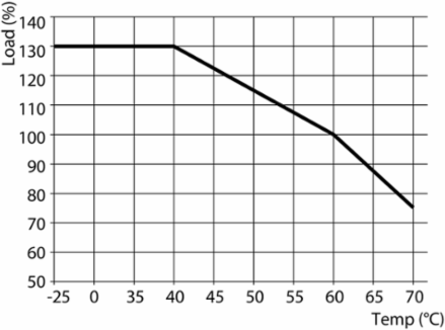

Derating> 60°C (2.5% / 1°C)
Housing versionMetal, corrosion resistant
Mounting position, installation noticeHorizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load
Power factor (approx.)> 0.9
Power loss, nominal load36.1 W
Series switching capabilityYes
Start-up≥ -40 °C

Signalling

LED green/redGreen: Operation (failure-free), Flashing green: advance warning I>90%, Green/red flashing: output switched off (switch-off mode), Flashing red: overload/error

Connection Data (Input)

Conductor cross-section, AWG/kcmil , max.8
Conductor cross-section, flexible , min.0.2 mm²
Conductor cross-section, rigid , min.0.2 mm²
Number of terminals3 for L/N/PE
Wire connection cross section, flexible (input), max.6 mm²
Conductor cross-section, AWG/kcmil , min.20
Conductor cross-section, rigid , max.10 mm²
Connection systemPUSH IN
Screwdriver blade0.6 x 3.5

Approvals

ApprovalsCULUS, CULUSEX, DNV GL, TUEV
UL File Number SearchE258476
ROHSConform

Dimensions And Weights

Width68 mm
Height130 mm
Depth125 mm
Net weight1,520 g
Width (inches)2.677 inch
Height (inches)5.118 inch
Depth (inches)4.921 inch

Electrical Safety (Applied Standards)

Electrical machine equipmentAcc. to EN60204
Protection against dangerous shock currentsAcc. to VDE0106-101
Safety extra-low voltageSELV according to EN 60950, PELV according to EN 60204
For use with electronic equipmentAcc. to EN50178 / VDE0160
Protective separation / protection against electrical shockVDE0100-410 / acc. to DIN57100-410
Safety transformers for switch-mode power suppliesAccording to EN 61558-2-16

Emc / Shock / Vibration

Noise emission in accordance with EN55032Class B
Interference immunity test acc. toEN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-6-1:2007, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, EN 61000-6-4:2007/A1:2011
Vibration resistance IEC 60068-2-62.3 g (on DIN rail), 4 g (with direct mounting)
Shock resistance IEC 60068-2-2730 g in all directions

Input

AC input voltage range85…277 V AC
DC input voltage range80 ... 410 V DC
Frequency range AC45…65 Hz
Inrush currentmax. 5 A
Surge protectionVaristor
Connection systemPUSH IN
Dielectric strengthmax. 300 V AC ≤ 15 s
Input fuse (internal)Yes
Rated input voltage100 - 240 V AC / 120 - 340 V DC

Classifications

ETIM 6.0EC002540
eClass 9.027-04-07-01
eClass 10.027-04-07-01
ETIM 7.0EC002540
eClass 9.127-04-07-01

Output

DCL - peak load reserve150 % (5 s); 500 % (15 ms)
Mains failure bridge-over time> 20 ms @ 115V AC/ 230 VAC
Output power480 W
Parallel connection optionyes, max 10
Ramp-up time≤ 100 ms
Reserve capacity @ U130% permanent at ≤ 40°C, 150 % (5 s)
Triggerable circuit breakersC2, C4, C6, B6, B10, B16
Connection systemPUSH IN
Nominal output current for U20 A @ 60 °C
Output voltage22.5...28.8 V
Protection against inverse voltageYes
Rated output voltage24 V DC ± 1 %
Residual ripple, breaking spikes< 50 mVss @ UNenn, Full Load

Connection Data (Signal)

Wire connection cross-section, flexible (signal), max.1.5 mm²
Wire connection methodPUSH IN
Wire cross-section, AWG/kcmil , min.26
Wire cross-section, solid , min.0.14 mm²
Wire connection cross-section, flexible (signal), min.0.14 mm²
Wire cross-section, AWG/kcmil , max.16
Wire cross-section, solid , max.1.5 mm²

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Insulation Coordination

Humidity at operating temperature5...95 %, no condensation
Insulation voltage output / earth0.5 kV
Pollution severity2
Surge voltage categoryIII
Insulation voltage input / earth3.2 kV
Insulation voltage, input/output3.5 kV
Protection classI, with PE connection

Connection Data (Output)

Conductor cross-section, AWG/kcmil , max.8
Conductor cross-section, flexible , max.6 mm²
Conductor cross-section, rigid , max.10 mm²
Connection systemPUSH IN
Screwdriver blade0.6 x 3.5
Conductor cross-section, AWG/kcmil , min.20
Conductor cross-section, flexible , min.0.2 mm²
Conductor cross-section, rigid , min.0.2 mm²
Number of terminals5 (+ + / - - -)

Temperatures

Humidity at operating temperature5...95 %, no condensation
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...70 °C

Ratings Iecex/Atex/Cul

Certificate no. (cULus)E258476
PRO TOP1 480W 24V 20A
PRO TOP1 480W 24V 20A
