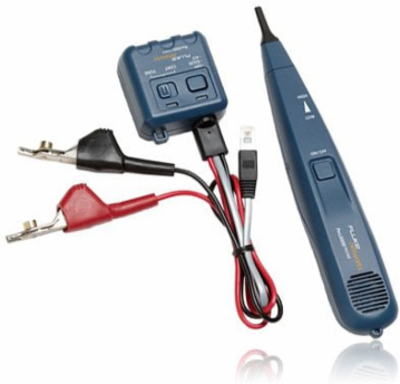

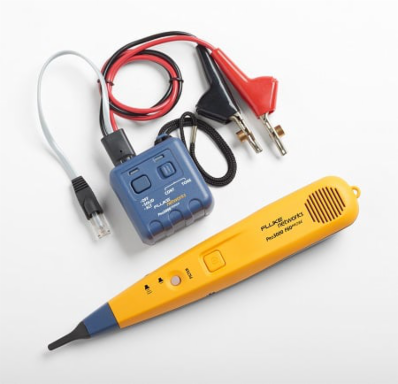

Fluke PRO3000F50 Pro3000™ Tone and Probe Series
- MPN: PRO3000F50
- UPC: 754082146018
- PPN: FLU-PRO3000F50
CAD
$267.55
/ EA
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Documentation & Downloads
Specifications
Pro3000 Analog Toner Specifications
| User interface | Slide switch selects Continuity or Tone Mode || Tone mode LED || Push button switch selects SOLID, ALT or OFF || Continuity/Polarity LED |
|---|---|
| Alternating Frequency | 1000/1500 Hz nominal |
| Output Power in Tone Mode | 8 dbm into 600 ohms |
| Battery | 9V alkaline |
| Case dimensions | 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm) |
| Solid Frequency | 1000 Hz nominal |
|---|---|
| Over Voltage Protection | 60 Vdc in Toner/Polarity Mode |
| Output Voltage Level in Continuity Mode | 8 Vdc with fresh battery |
| Temperature | Operating: -20° C to 60° C, Storage: -40° C to 70° C |

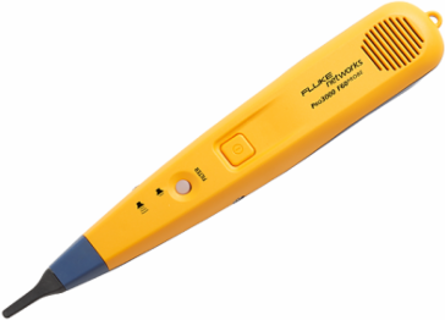

Pro3000 Analog Probe Specifications
| User interface | Volume dial || Replaceable tip || ON/OFF push button || 3.5 mm earphone jack |
|---|
| Case dimensions | 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm) |
|---|
