Klein Tools VDV500-820 Tone & Probe PRO Kit, 7" Length, Includes Batteries & Pouch
Klein Tools VDV500-820 Tone & Probe PRO Kit, 7" Length, Includes Batteries & Pouch
- MPN: VDV500-820
- UPC: 092644692192
- PPN: KLT-VDV500-820
- UNSPSC: 41111917
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$126.91/ EA
Description

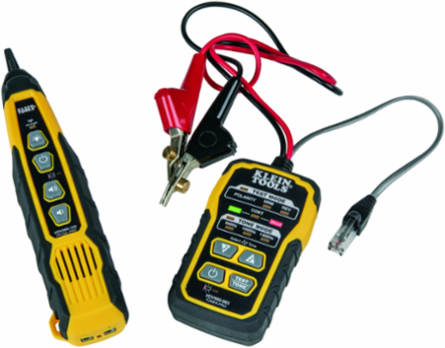

This kit includes the tools necessary to tone and trace wires in common wiring systems. This premium tone generator has Angled Bed of Nails (ABN) clips that securely grip the cable. Tone Generator emits five distinct tones. An RJ11 plug easily connects to telephone or RJ45 data jacks for toning. The toner, also checks continuity and polarity that are indicated by clearly labeled LEDs. The probe traces with the tones signal. The adjustable-volume speaker amplifies the tone. The 3.5 mm jack allows for headphones (sold separately) to be attached in noisy environments. The probe has a tool-less non-metallic durable replaceable tip. The probe enables testing in distribution blocks without disturbing other services.
Features

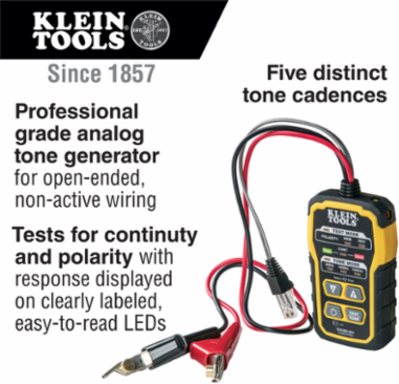

- Includes a professional grade analog tone generator and tracing probe for open-ended, non-energized wiring
- Toner-Pro features 5 distinct tone cadences, transmits 1,000+ feet
- Rugged Angled Bed of Nails (ABN) clips securely attach to wires

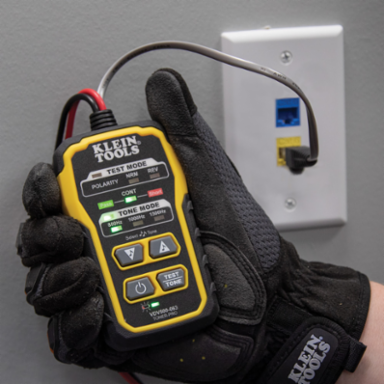

- RJ11 plug easily connects to telephone and RJ45 data jacks to tone wire pair

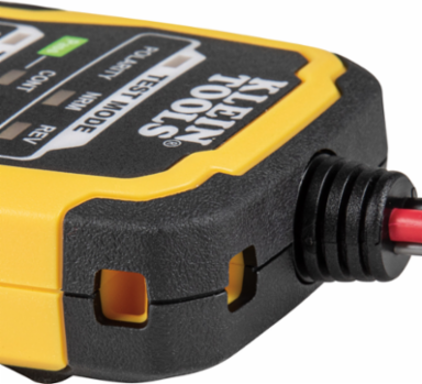

- Toner-Pro tests for continuity and polarity with results indicated by clearly labeled LEDs

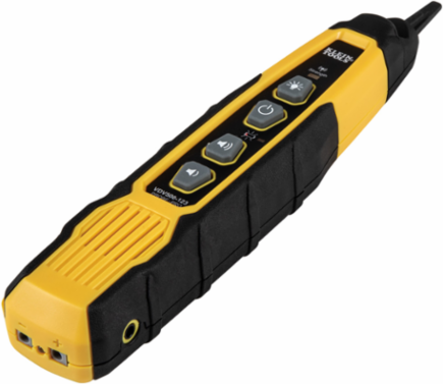

- Probe-Pro features 3.5 mm headphone jack for noisy environments (headphones not included)

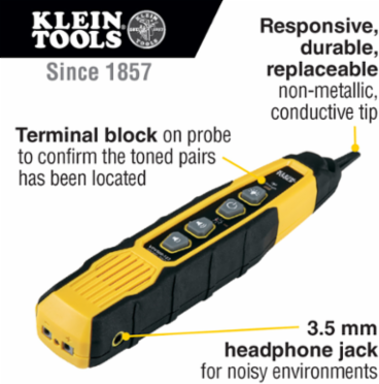

- Responsive probe with durable non-metallic, replaceable conductive tip (VDV999-068) - sold separately
- Work light on probe tip for use in dark spaces
- Terminal block on probe to confirm the toned pair
- Each tool includes 4X AAA batteries
- Custom, padded, divided, zipper pouch for convenient storage (VDV770-500) included with kit
- Angled Bed of Nails with (ABN) Clips, 5 Distinct Cadences, Worklight
Specifications
Specifications
- Material
- Plastics, Metal, PCB Boards and LEDs
- Application
- Wire Toning & Tracing
- Included
- VDV500-123 Probe-Pro Tracing Probe; VDV500-063 Toner-Pro Tone Generator; VDV770-500 Pouch; 8 x AAA Batteries
- Weight (lb)
- 0.82
- Weight (kg)
- 0.4
- Overall Width (cm)
- 7.6
- Overall Length (cm)
- 17.8
- Width
- 7.0000 in
- Weight
- 1.2500 lbs
TypeTone Generator Tracing Probe
Batteries8 x AAA
Overall Height (cm)30.5
Overall Width (Inch)3
Overall Length (Inch)7
Overall Height (Inch)12
Height12.0000 in
Depth3.0000 in
