Klein Tools VDV500-123 Probe-PRO Tone Tracing Probe, 9 Inch Height, 1.2 Inch Width, 4 x AAA Batteries
- MPN: VDV500-123
- UPC: 092644692345
- PPN: KLT-VDV500-123
- UNSPSC: 41111917
CAD
$70.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

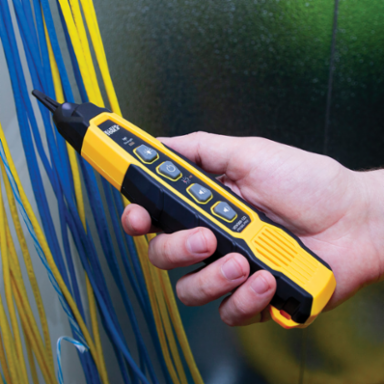

The professional series Probe-Pro Tone Tracer traces non-active wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments. The terminal block confirms the toned pair has been located.
Features

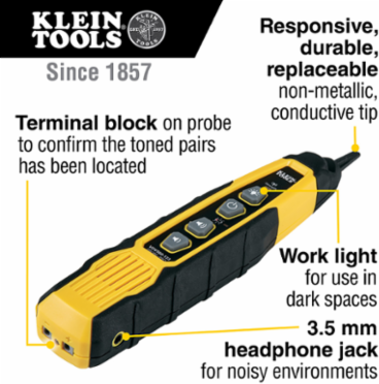

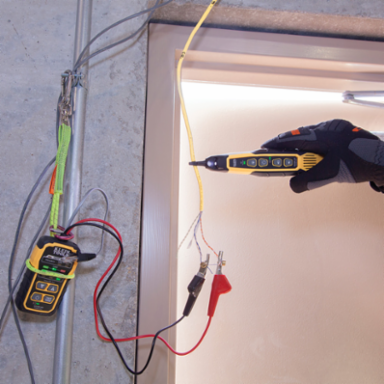

- Traces open-ended, non-energized wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately)

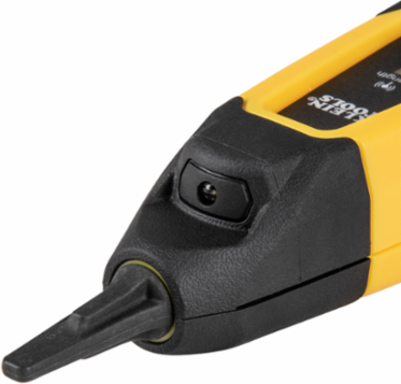

- Responsive, durable, replaceable non-metallic, conductive tip

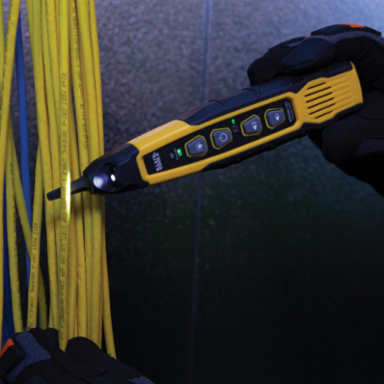

- Work light for use in dark spaces
- 3.5 mm headphone jack for noisy environments (headphones not included)
- Terminal block on probe to confirm the toned pair has been located
- Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-068) available
- One push power button with power-on LED indicator with no need to hold button down
- Auto power-off
- Low battery indicator
- 4 x AAA batteries included
- Includes a loop for a lanyard
- Works with Klein's Scout® Pro, Lan Scout®, Jr. and Commander™ series of testers
- Worklight, Stay on Power Button
Documentation & Downloads
Specifications
Key Specifications
- Type
- Accessory Probe
- Batteries
- 4 x AAA
- Low Battery Indicator
- Yes
- Power On LED Indicator
- Yes
- Material
- Plastic and Metal
- Application
- Wire Tracing
- Battery Life
- 25 hr
- Overall Width
- 3 cm (1.2 Inch)
- Overall Length
- 3.6 cm (1.4 Inch)
- Width
- 1.2000 in
- Weight
- 0.3000 lbs
Auto-Power OffYes
Visual NotificationLED
Continuity TestingNo
Amplifier Overload IndicationNo
Replaceable TipYes
Adjustable VolumeYes
IncludedTracing Probe; 4 x AAA Batteries
Overall Height9 Inch (22.9 cm)
Height1.4000 in
Depth9.0000 in
