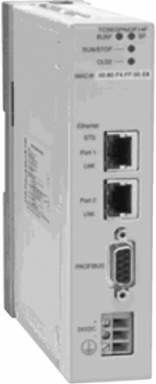

Schneider Electric TCSEGPA23F14F Profibus DP V1 Remote Master for Modicon PLCs, 0.62 kg
Schneider Electric TCSEGPA23F14F Profibus DP V1 Remote Master for Modicon PLCs, 0.62 kg
- MPN: TCSEGPA23F14F
- PPN: SCH-TCSEGPA23F14F
- UNSPSC: 32151702
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4251.48/ EA
Description
This product is part of the Profibus DP range, an offer of remote master modules. The Profibus Remote Master (PRM) module is connected to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and the instrumentation. It has Profibus 2 twisted shielded pairs cable and Modbus TCP category 5 shielded twisted pair (STP) transmission support medium. It is equipped with 2 Ethernet TCP/IP-RJ45 for Modbus TCP, Profibus DP SUB-D 9 for Profibus DP V1 connections. Communication services are check slave configuration (on power up) class 1 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master etc. It weighs 0.62kg. This product can be used to connect Modicon Quantum, Premium, M580, and M340 Programmable Logic Controllers (PLC) to Profibus DP V1 via the I/O scanner function. The kit includes CD including the communication DTM and CD including the master DTM for configuration inside UNITY.
Features
- For Premium/Quantum/M340/M580 PLC
- Industrial bus structure
- RS485 physical interface
- NRZ mode of transmission
- Standard module format
- Wide range of operating temperature from 0°C to 60°C
Specifications
Communications & Management Attributes
- Communication Service
- Profibus FMS message handling not supported class 2 master, check slave configuration (on power up) class 1 master, acyclic DP V1 communication (R/W) class 1/2 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master, Profibus FMS message handling not supported class 1 master, read/write DP slave I/O data class 1 master, set slave parameters (on power up) class 1 master, transfer slave diagnostic data class 1 master, sync and freeze class 1 master
Communication GatewayEthernet Modbus TCP to Profibus DP V1 gateway
Complementary Attributes
- Integrated Connection Type
- 2 Ethernet TCP/IP - RJ45 Modbus TCP, Profibus DP - SUB-D 9 Profibus DP V1
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- CD including the communication DTM, CD including the Master DTM for PRM configuration inside UNITY
- Transmission Rate
- 12 Mbit/s, 100 m Profibus without repeater, 12 Mbit/s, 400 m Profibus with 3 repeaters, 9.6 kbit/s, 1200 m Profibus without repeater, 9.6 kbit/s, 4800 m Profibus with 3 repeaters, 10...100 Mbit/s, 100 m Modbus TCP without repeater
- Local Data Status
- Publishable
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Current Consumption
- 200 mA 24 V DC external
- Package Weight Lbs
- 638.000 g
- Product Or Component Type
- Profibus DP V1 remote master
- Returnability
- No
- Sustainable Packaging
- Yes
- Country Of Origin 6
- MX
- Product Kit Identifier
- N
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Method Of Accessmaster class 1 Profibus DP, master class 2 Profibus DP, slave Modbus TCP
Transmission Support MediumProfibus 2 twisted shielded pairs cable, Modbus TCP category 5 shielded twisted pair (STP)
Local Publishable Date2024-02-15
ServiceabilityNo
Field Service DivisionIDIBS
Legacy WEEE ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Return IndicatorN
Function OptionAdvanced
Market SegmentationIndustrial
Mode Of TransmissionNRZ
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductProfibus DP
Structure Typeindustrial bus
Medium DescProfibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC
Stocking FlagY
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- Take Back
- No, Nej
- Product Compatibility
- M340 PLC, M580 PLC, Quantum PLC, Premium PLC
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -45-85 °C
- Packaging Made With Recycled Cardboard
- Yes
- Relative Humidity
- 10-95 % without condensation
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Operation0-60 °C
Operating Altitude<= 6561.68 ft (2000 m)
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Profibus DP V1 remote master
Range Of ProductProfibus DP
Output Attributes
- Number Of Outputs
- 2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Number Of Inputs
- 2
Specifications
- Country of Origin
- Ireland, India
