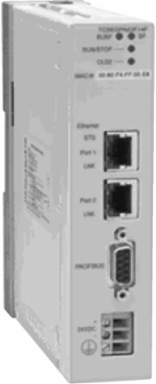

Schneider Electric TCSEGPA23F14FK Profibus DP V1 Remote Master, 12 Mbit/s, RS485, 0.62 kg
- MPN: TCSEGPA23F14FK
- PPN: SCH-TCSEGPA23F14FK
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for seamless integration within industrial automation systems, this Profibus DP V1 remote master from Schneider Electric is compatible with a range of PLCs, including M580, Premium, M340, and Quantum models. With a robust transmission rate of up to 12 Mbit/s and support for both Profibus DP and Modbus TCP protocols, it ensures reliable communication across your network. The module features a standard format with two inputs and outputs, making it versatile for various applications, while its conformal coating provides added protection in challenging environments. Additionally, this product is packaged sustainably, utilizing recycled cardboard, and adheres to strict environmental guidelines, ensuring responsible disposal in compliance with EU regulations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Ireland, Sweden, United States
Communications & Management Attributes
- Communication Service
- Profibus FMS message handling not supported class 2 master, check slave configuration (on power up) class 1 masteracyclic DP V1 communication (R/W) class 1/2 mastermanage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master, Profibus FMS message handling not supported class 1 master, read/write DP slave I/O data class 1 master, set slave parameters (on power up) class 1 master, transfer slave diagnostic data class 1 master, sync and freeze class 1 master
Communication GatewayEthernet Modbus TCP to Profibus DP V1 gateway
Complementary Attributes
- Integrated Connection Type
- 2 Ethernet TCP/IP - RJ45 Modbus TCP, Profibus DP - SUB-D 9 Profibus DP V1
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Kit Composition
- CD including the communication DTM, CD including the Master DTM for PRM configuration inside UNITY
- Transmission Rate
- 12 Mbit/s, 100 m Profibus without repeater12 Mbit/s, 400 m Profibus with 3 repeaters9.6 kbit/s, 1200 m Profibus without repeater, 9.6 kbit/s, 4800 m Profibus with 3 repeaters10...100 Mbit/s, 100 m Modbus TCP without repeater
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mode Of Transmission
- NRZ
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- conformal coating Humiseal 1A33
- Returnability
- No
- Sustainable Packaging
- Yes
- Number Of Server Device(S)
- 126
- Package Weight(Lbs)
- 646.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Method Of Accessmaster class 1 Profibus DP, master class 2 Profibus DPslave Modbus TCP
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2024
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Current Consumption200 mA 24 V DC external
Module Formatstandard
Product Or Component TypeProfibus DP V1 remote master
Range Of ProductProfibus DP
Structure Typeindustrial bus
Transmission Support MediumProfibus 2 twisted shielded pairs cableModbus TCP category 5 shielded twisted pair (STP)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
Ambient Air Temperature For Storage-45-85 °C, -45-85 °C
Product CompatibilityM580 PLC, Premium PLC, M340 PLC, Quantum PLC
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Profibus DP V1 remote master
Range Of ProductProfibus DP
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Output Attributes
- Number Of Outputs
- 2
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Number Of Inputs
- 2
