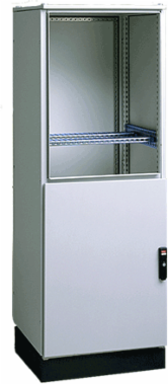

nVent Hoffman PSY1666SS PROLINE™-SY, Type 12
- MPN: PSY1666SS
- UPC: 783510354893
- PPN: HOF-PSY1666SS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Traditional PROLINE™-SY Modular Enclosures are designed to protect many kinds of HMI systems, including panel- or rack-mount flat screens and control panels. There are multiple configuration possibilities—simply add components to the frame to create an enclosure that meets design requirements.
Features
- The top compartment is open and can accommodate a variety of front cover, door and window door options
- Solid covers with prefabricated operator interface cutouts are available
- Internal grid straps are factory installed in top compartment to provide support for operator interfaces
- Two doors, one on the lower front and one on the back of the enclosure, provide convenient access and additional protection
- The bottom door is hinged on the left and has an attractive Keylocking Flush Swing Handle
- The solid rear door permits rear access to equipment and wiring and includes a keylocking pushbutton handle
- Standard external components include solid sides, solid top and a 100-mm solid base
Specifications
Technical Data
| Height (A) in. | 62.99 |
|---|---|
| Depth (C) in. | 23.62 |
| Width (B) in. | 23.62 |
|---|---|
| Material | Stainless Steel |
Overview
| Industry Standards | UL 508A Listed; Type 12; File Number E61997 cUL Listed per CSA C22.2 No 94; Type 12; File Number E61997 NEMA/EEMAC Type 12 CSA File Number 42186: Type 12 VDE IP55 IEC 60529, IP55 |
|---|---|
| Material | Steel |
| Ship Wt. Std. Pkg. (lbs) | 214.0 |
| IP Rating | IP55 |
| Bulletin Number | P20SY |
|---|---|
| Model Code | 35489 |
| Interchangeable | False |
| Material | Stainless Steel |
