Weidmuller

Weidmuller 2488600000 HDC 24B ABU N

HDC 24B ABU N
  • MPN: 2488600000
  • PPN: WDM-2488600000

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$27.78/ EA

Description

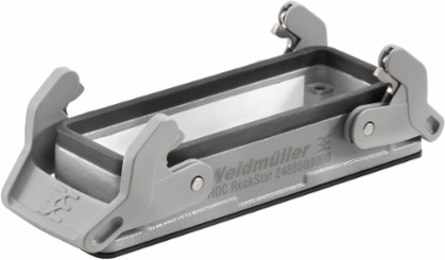

HDC enclosures, Size: 8, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard

Specifications

Size
8
Tightening torque
1.2 Nm
Total length housing
120 mm
Width
57 mm / 2.244 inch
Mounting dimension - width
130 mm
Material of locking element
Polyamide, Stainless steel, rust-proof
Surface finish
Powder coating
Design of locking system
Side-locking clamp on lower side
Clamp version
Side-locking clamp
Approvals
CE, cURus
REACH SVHC
Lead 7439-92-1
Colour
grey
Product type
Enclosures
EMC housings
No
ETIM 6.0 / 7.0
EC000437
Protection degreeIP65
Limit temperature-40 °C to 125 °C
Height29.5 mm
Mounting dimension - height32 mm
Hole pitch length A2130 mm
Housing main materialdiecast aluminium
SealingNBR
Design of housingOpen base
TypeBulkhead (feed-through)
ROHSConform
UL File Number SearchE92202
Product familyHDC enclosures
Suitable for ModuPlugYes
eClass 9.0 / 9.1 / 10.027-44-02-02
Top part/bottom part/lidlower part
