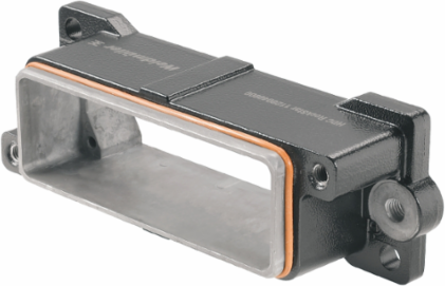

Weidmuller 1120040000 HDC IP68 HP 24B A
- MPN: 1120040000
- PPN: WDM-1120040000
CAD
$69.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC enclosures, Size: 8, Protection degree: IP68, IP69K, Open base, Clamping yoke connection, Standard
Documentation & Downloads
Specifications
General Data
- EMC housings
- Yes
- Protection degree
- IP68, IP69K
- Surface finish
- Powder coating
Housing main materialdiecast aluminium
SeriesHighPower
Approvals
- Approvals
- EAC
ROHSConform

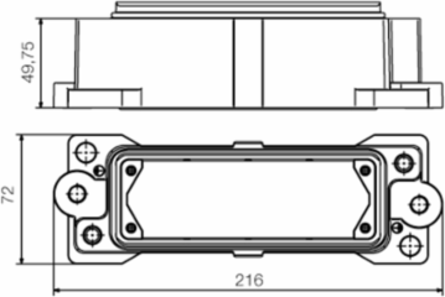

Dimensions And Weights
- Width
- 72 mm
- Height
- 49.8 mm
- Depth
- 216 mm
- Net weight
- 643 g
Width (inches)2.835 inch
Height (inches)1.961 inch
Depth (inches)8.504 inch
General Descriptions
- Size
- 8
Protection degreeIP68, IP69K
Version
- Clamp version
- Clamping yoke connection
- Design of housing
- Open base
- Sealing
- Silicone rubber
- Top part/bottom part/lid
- lower part
DesignStandard
Design of locking systemClamping yoke connection
Size8
TypeBulkhead (feed-through)
Material
- Colour
- black
Classifications
- ETIM 6.0
- EC000437
- eClass 9.0
- 27-44-02-02
- eClass 10.0
- 27-44-02-02
ETIM 7.0EC000437
eClass 9.127-44-02-02
UNSPSC30-21-18-01
Design
- Product family
- HDC enclosures
- Type
- Bulkhead (feed-through)
Product typeEnclosures
Temperatures
- Limit temperature
- -50 °C ... 120 °C
