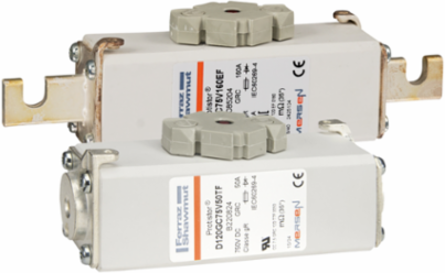

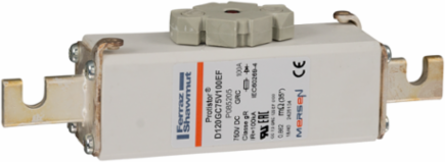

Mersen P085205 Protistor SB Fuse-Link, 100A, 750VDC, Size 120, Open Slot Blades, Ceramic
- MPN: P085205
- PPN: FER-P085205
CAD
$2505.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
- Rated voltage DC IEC
- 750 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- gR
- Mounting
- Bolted
- Melting I2t
- 3.01 kA²s
- Design Details
- gRC
- Indication System Type
- Striker
- Connection/Terminal Type
- Open Slot Blades
- Power Dissipation at Rated Current Value
- 16.7 W
- Length
- 7.06 in
- Weight
- 1.576 lb
Ampere Rating100 A
AC or DCDC
Fuse Size120
Clearing I2t At Rated Voltage40 kA²s
Max. Rated Breaking Capacity DC100 kA
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialCeramic
Width1.57 in
Height1.77 in
