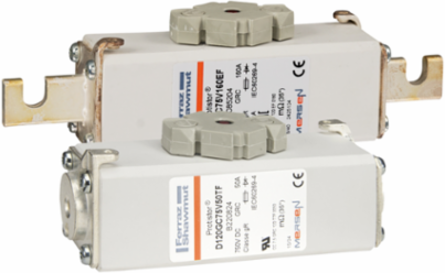

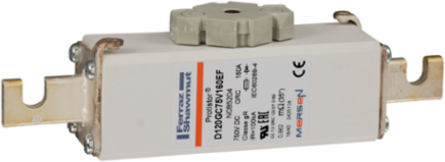

Mersen N085204 Protistor SB Fuse-Link, 750VDC, Size 120, 160A, Grit Characteristic
- MPN: N085204
- PPN: FER-N085204
CAD
$2505.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
| Rated voltage DC IEC | 750 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gR |
| Mounting | Bolted |
| Melting I2t | 7.49 kA²s |
| Design Details | gRC |
| Indication System Type | Striker |
| Connection/Terminal Type | Open Slot Blades |
| Power Dissipation at Rated Current Value | 27 W |
| Length | 7.06 in |
| Weight | 1.576 lb |
| Ampere Rating | 160 A |
|---|---|
| AC or DC | DC |
| Fuse Size | 120 |
| Clearing I2t At Rated Voltage | 100 kA²s |
| Max. Rated Breaking Capacity DC | 100 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Width | 1.57 in |
| Height | 1.77 in |
