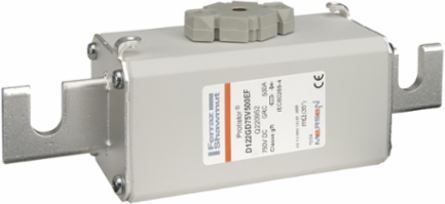

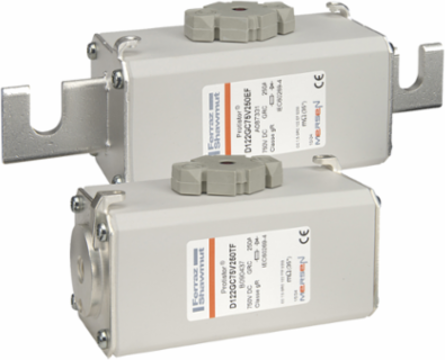

Mersen Q220952 Protistor SB Fuse-Link gR 750VDC, Size 122, 500A, Silver-Plated Copper
- MPN: Q220952
- PPN: FER-Q220952
CAD
$2758.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
- Rated voltage DC IEC
- 750 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- gR
- Mounting
- Bolted
- Max. Rated Breaking Capacity DC
- 100 kA
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Width
- 2.32 in
- Height
- 2.48 in
Ampere Rating500 A
AC or DCDC
Fuse Size122
Melting I2t103 kA²s
Design DetailsgRD
Indication System TypeStriker
Connection/Terminal TypeOpen Slot Blades
Power Dissipation at Rated Current Value95 W
Length8.13 in
Weight2.866 lb
