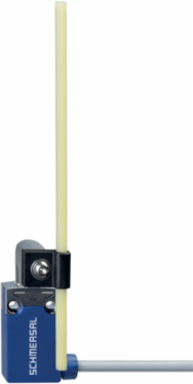

Schmersal 103006581 Position Switch PS116 Rod Lever J200, 200 mm Lever Length, IP66/IP67, 240 g
- MPN: 103006581
- PPN: SCM-103006581
CAD
$145.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch PS116 Rod Lever J200, 200 mm Lever Length, IP66/IP67, 240 g
Features
- Pre-wired cable right, 2 m
- Snap action 1 Normally open contact (NO) / 1 Opener (NC)
- Thermoplastic enclosure
- Symmetric enclosure
- Lever angle adjustable in 15° steps
- Protection class IP66, IP67
- Actuator heads can be repositioned by 8 x 45°
- Design to EN 50047
Documentation & Downloads
Specifications
Electrical data
| Required rated short-circuit current | 400 A |
|---|---|
| Utilisation category AC-15 | 1.5 A |
| Utilisation category DC-13 | 1.5 A |
| Switching principle | Snap action |
| Switching frequency | 5,000 /h |
| Material of the contacts, electrical | Silver |
| Utilisation category AC-15 | 240 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |

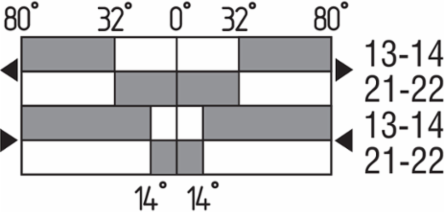

| Switching element | 1 NO contact, 1 NC contacts |
| Bounce duration, maximum | 3 ms |
| Switchover time, maximum | 5.5 ms |

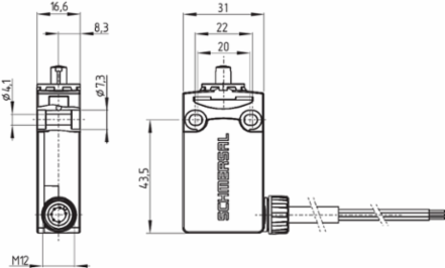

Mechanical data - Dimensions
| Length x Width x Height | Height of sensor: 169 mm (rod centre) |
|---|---|
| Width of sensor | 31 mm |
| Length of the lever | 200 mm |
| Length of sensor | 16.6 mm |
|---|---|
| Diameter of the Rod | 6 mm |
Ambient conditions - Insulation values
| Rated insulation voltage U | 300 V |
|---|---|
| Degree of pollution | 3 |
| Rated impulse withstand voltage U | 4 kV |
|---|
Safety classification - Safety outputs
| B | 20,000,000 Operations |
|---|---|
| Note (B | at 10% I | and ohmic load |
| B | 1,000,000 Operations |
|---|
General data - Features
| Safety functions | No |
|---|---|
| Number of safety contacts | 1 |
| Number of auxiliary contacts | 1 |
|---|
General data
| Standards | EN IEC 60947-5-1 |
|---|---|
| Housing construction form | Norm construction design |
| Active area | Metal film |
| Terminal (mechanical) | right |
|---|---|
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated |
| Gross weight | 240 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 | IP66 |
|---|---|
| Protection class | II |
| Ambient temperature | -30 ... +80 °C |
|---|
Mechanical data - Connection technique
| Termination | Pre-wired cable | Cable, 4-pole |
|---|---|
| Wire cross-section | 0.5 mm |
| Length of cable | 2 m |
|---|---|
| Cable type | LiYY |
Mechanical data

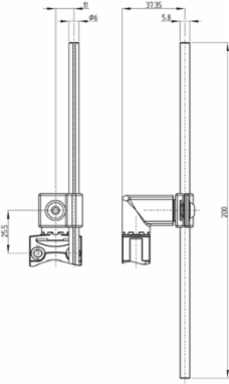

| Actuating element | Rod lever J200 |
|---|---|
| Actuating speed, minimum | 10 mm/min |
| Actuating torque, minimum | 0.2 Nm |
| Mechanical life, minimum | 10,000,000 Operations |
|---|---|
| Actuating speed, maximum | 1 m/s |
| Positive break torque | 0.6 Nm |
Approvals - Standards
| Certificates | cURus | CCC |
|---|
