Schmersal 103015046 Position Switch with Rod Lever J200, 32.5 mm Length, IP67, 10 Million Operations
- MPN: 103015046
- PPN: SCM-103015046
CAD
$102.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Position Switch with Rod Lever J200, 32.5 mm Length, IP67, 10 Million Operations
Features
- Lever angle adjustable in 15° steps
- Simple and quick to adjust the control elements by 45°.
- thermoplastic enclosure with foldable latching cover
- Quick connection technology as connection terminals rotated by 45°
- cable entry 1 x M20 x 1,5
- Design to EN 50047
- LED version available
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 240 VAC
- Utilisation category DC-13
- 24 VDC

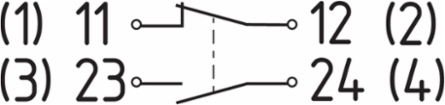

- Switching element
- 1 NO contact, 1 NC contacts
- Switching frequency
- 5,000 /h
Required rated short-circuit current400 A
Utilisation category AC-153 A
Utilisation category DC-133 A
Switching principleSlow action
Material of the contacts, electricalSilver

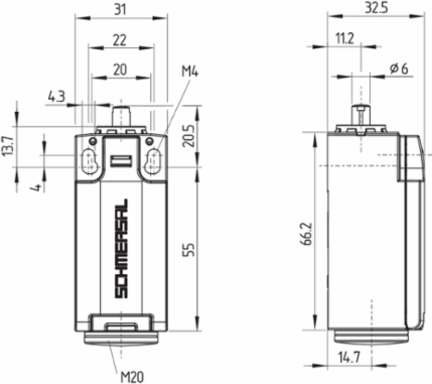

Mechanical data - Dimensions
- Length of sensor
- 32.5 mm
- Height of sensor
- 180.5 mm
Width of sensor31 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
- Degree of pollution
- 3
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Safety functions
- No
- Number of safety contacts
- 1
Number of auxiliary contacts1
General data
- Standards
- EN IEC 60947-5-1
- Enclosure material
- Plastic, glass-fibre-reinforced
Housing construction formNorm construction design
Gross weight125 g
Safety classification
- Mission time
- 20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP66
- Protection class
- II
Ambient temperature-30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1.5 mm²
- Tightening torque of electrical connection, maximum
- 0.8 Nm
Cable section, minimum0.34 mm²
Tightening torque of electrical connection, minimum0.6 Nm
Mechanical data

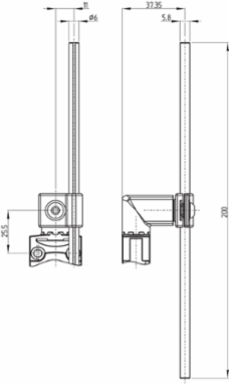

- Actuating element
- Rod lever J200
- Mechanical life, minimum
- 10,000,000 Operations
- Actuating speed, minimum
- 60 mm/min
- Tightening torque of the fixing screws
- 1.2 Nm
Position of the cable glandbottom
Positive break force, minimum40 N
Actuating speed, maximum1 m/s
Approvals - Standards
- Certificates
- cULus | CCC
