Schmersal 103015020 PS216 Position Switch with Rod Lever J200, Height 180.5 mm, IP67, 1 NO + 1 NC Contacts

MPN: 103015020
PPN: SCM-103015020

$114.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PS216 Position Switch with Rod Lever J200, Height 180.5 mm, IP67, 1 NO + 1 NC Contacts

Features

Lever angle adjustable in 15° steps
Simple and quick to adjust the control elements by 45°.
thermoplastic enclosure with foldable latching cover
Quick connection technology as connection terminals rotated by 45°
cable entry 1 x M20 x 1,5
Design to EN 50047
LED version available

Documentation & Downloads

Specifications

Electrical data

Thermal test current	10 A
Utilisation category AC-15	240 VAC
Utilisation category DC-13	24 VDC

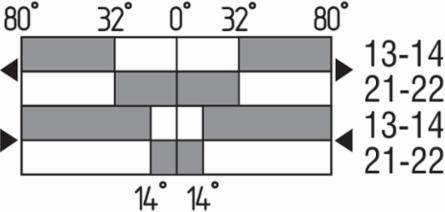

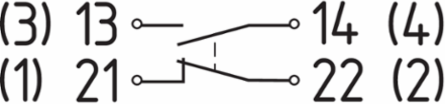

Switching element	1 NO contact, 1 NC contacts
Switching frequency	5,000 /h

Required rated short-circuit current	400 A
Utilisation category AC-15	3 A
Utilisation category DC-13	3 A
Switching principle	Snap action
Material of the contacts, electrical	Silver

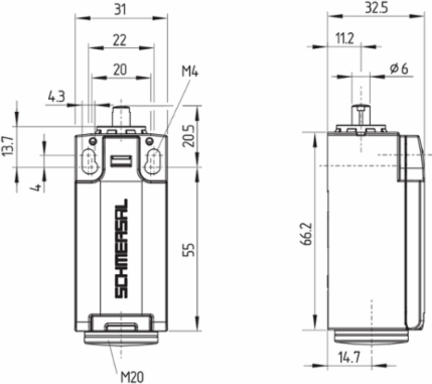

Mechanical data - Dimensions

Length of sensor	32.5 mm
Height of sensor	180.5 mm

Width of sensor	31 mm

Ambient conditions - Insulation values

Rated insulation voltage U	250 VAC
Degree of pollution	3

Rated impulse withstand voltage U	4 kV

Safety classification - Safety outputs

B	20,000,000 Operations

General data - Features

Safety functions	No
Number of safety contacts	1

Number of auxiliary contacts	1

General data

Standards	EN IEC 60947-5-1
Enclosure material	Plastic, glass-fibre-reinforced

Housing construction form	Norm construction design
Gross weight	190 g

Safety classification

Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Protection class	II

Ambient temperature	-30 ... +80 °C

Mechanical data - Connection technique

Termination	Screw terminals M20 x 1.5
Cable section, maximum	1.5 mm²
Tightening torque of electrical connection, maximum	0.8 Nm

Cable section, minimum	0.34 mm²
Tightening torque of electrical connection, minimum	0.6 Nm

Mechanical data

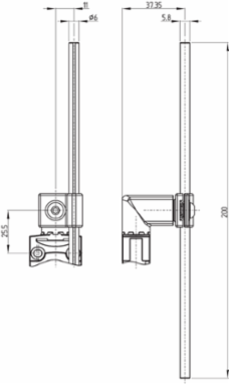

Actuating element	Rod lever J200
Mechanical life, minimum	10,000,000 Operations
Actuating speed, minimum	10 mm/min
Tightening torque of the fixing screws	1.2 Nm
