Schmersal 103032511 Pull-Wire Switch with IP67 Protection, 116 mm Height, Silver Contacts
- MPN: 103032511
- PPN: SCM-103032511
CAD
$143.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pull-Wire Switch with IP67 Protection, 116 mm Height, Silver Contacts
Features
- thermoplastic enclosure with foldable latching cover
- small body
- vertical mounting
- Twisting of towing eye not possible

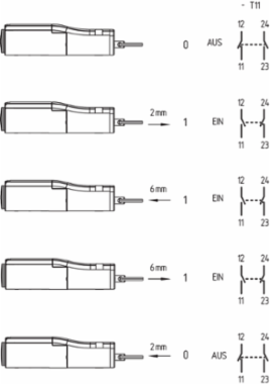

- Progress function (ballpoint pen principle)
- LED version available
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 240 VAC
- Utilisation category DC-13
- 24 VDC

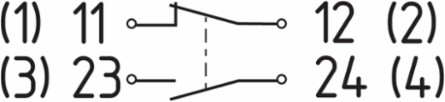

- Switching element
- 1 NO contact, 1 NC contacts
- Material of the contacts, electrical
- Silver
Required rated short-circuit current400 A
Utilisation category AC-153 A
Utilisation category DC-133 A
Switching principleSlow action

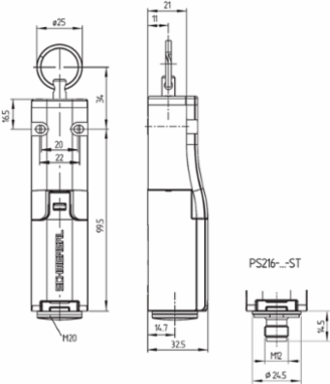

Mechanical data - Dimensions
- Length of sensor
- 32.5 mm
- Height of sensor
- 116 mm
Width of sensor31 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
- Overvoltage category
- III
Rated impulse withstand voltage U4 kV
Degree of pollution3
General data - Features
- Safety functions
- Yes
- Number of safety contacts
- 1
Number of auxiliary contacts1
General data
- Housing construction form
- Norm construction design
- Gross weight
- 133 g
Length of the wire, maximum50 m
Ambient conditions
- Degree of protection
- IP67 | IP66
- Protection class
- II
Ambient temperature-30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1.5 mm²
Cable section, minimum0.34 mm²
Mechanical data
- Position of the cable gland
- bottom
- Positive break force, minimum
- 45 N
- Actuating speed, maximum
- 1 m/s
Mechanical life, minimum100,000 Operations
Actuating speed, minimum60 mm/min
Approvals - Standards
- Certificates
- cULus | CCC
