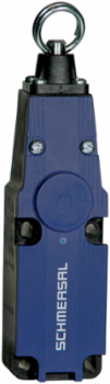

Schmersal 103000084 TQ700-20S Pull-Wire Switch, IP67, 160 mm Height, 2 Contacts, 10 A Thermal Test Current
- MPN: 103000084
- PPN: SCM-103000084
CAD
$211.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TQ700-20S Pull-Wire Switch, IP67, 160 mm Height, 2 Contacts, 10 A Thermal Test Current
Features
- 1 Cable entry M20
- Thermoplastic enclosure
- vertical mounting
- Large wiring compartment
- Twisting of towing eye not possible
- wire pull detection
- 2 Contacts
Documentation & Downloads
Specifications
Key Specifications
| Width | 40.5 mm |
|---|---|
| Depth | 42.5 mm |
| Height | 160 mm |
|---|
Electrical data
| Thermal test current | 10 A |
|---|---|
| Switching principle | Slow action |
| Switching element | Normally open contact (NO) |
|---|---|
| Material of the contacts, electrical | Silver |

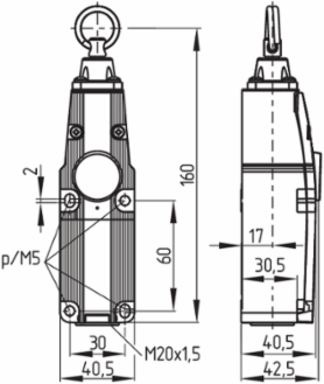

Mechanical data - Dimensions
| Width | 40.5 mm |
|---|---|
| Depth | 42.5 mm |
| Height | 160 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 500 V |
|---|
| Rated impulse withstand voltage U | 6 kV |
|---|
General data - Features

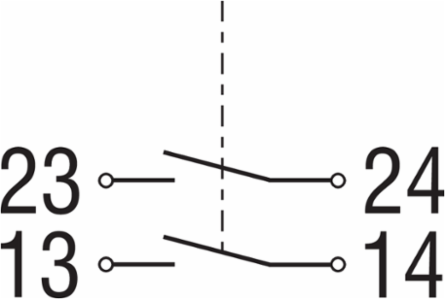

| Number of normally closed (NC) | 0 |
|---|
| Number of normally open (NO) | 2 |
|---|
General data
| Standards | EN IEC 60947-5-1 |
|---|---|
| Material of the housing cover | Glass-fibre, thermoplastic |
| Enclosure material | Glass-fibre, thermoplastic |
|---|---|
| Gross weight | 255 g |
Ambient conditions
| Degree of protection | IP67 |
|---|
| Ambient temperature | -25 ... +70 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
| Cable section, maximum | 2.5 mm² |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Actuating force, maximum | 101.2 N |
| Actuating force, minimum | 74.8 N |
|---|
Approvals - Standards
| Certificates | TÜV |
|---|
